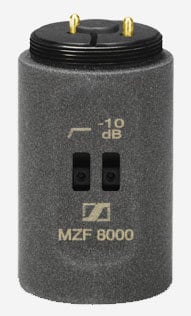

Sennheiser MZF8000
Filter Module, MKH8000 series

OUR PART #  MZF8000

Our Price: $389.90
List Price: $609.00
You save 36%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The MZF 8000 is a filter module for the MKH 8000 professional RF condenser microphone series. Especially designed for use in the broadcast and film industries, it effectively blocks interference caused by infrasound, such as low-frequency noises caused by wind and handling.

Features:

  • Extremely low inherent noise – complex acoustic details are preserved
  • Fixed low-cut filter (–3 dB at 16 Hz)
  • Switchable roll-off filter (–3 dB at 160 Hz)
  • Suppresses infrasound especially well
  • Fully floating balanced output allows for non-critical connection technology with minimal distortion
  • High-quality –10 dB pad protects against overdriving
  • Extremely compact design
  • Module can be used with remote accessory

Specifications:

  • Low-cut filter (switchable): -3 dB at 160 Hz
  • Low-cut filter: -3 dB at 16 Hz (fixed low cut)
  • Attenuation: -10 dB (switchable)
  • Equivalent noise level: increase at 0 dB: 1 dB(A), at -10 dB: 4 dB (A)
  • Input voltage range: at 0 dB: max. 14 dBV, at -10 dB: max. 9 dBV
  • Output voltage: at 0 dB: max. 14 dBV, at -10dB: max. - 1 dBV
  • Nominal impedance: 50O
  • Dimensions: Diameter 0.7 in. (19 mm), length 1.1 in (29 mm)
  • Weight: 0.9 oz (26 g)
  • Operating temperature: -10 °C to 60°C
  • Phantom powering: 44 to 52 V
