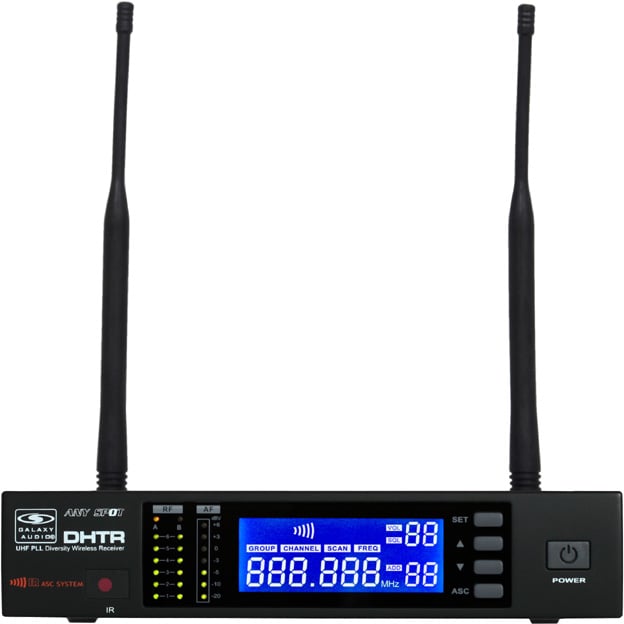

Galaxy Audio DHTR
DHT Receiver

OUR PART #:  DHTR

Galaxy Audio's DHTR receiver features Auto Scan, which searches for an available frequency to use, and then IR Syncs the frequency to a transmitter.
Learn More
Selected Model Price: $249.99
List Price: $399.99
Save up to 38%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio DHTR
Select model: (shipping times are approximate)
Qty:

Similar Products

Galaxy Audio's DHTR receiver features Auto Scan, which searches for an available frequency to use, and then IR Syncs the frequency to a transmitter.  The large LCD display shows channel number, frequency, lock mode, and volume output.  The DHTR also has an easy to read RF and AF indicator.  The UHF diversity antennas ensure quality operation.

Features:

  • 300 ft. Range
  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Squelch Adjustment
  • XLR/ 1/4" Output
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount Included

Specifications:

  • Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV ┬╝" connector (into 3KOhms load) -18dBV
  • Output Impedance: XLR connector 200Ohms ┬╝" connector 1KOhms
  • XLR output: Impedance balanced
    - Pin 1: Ground (cable shield)
    - Pin 2: Audio
    - Pin 3: No Audio
  • Sensitivity: -93dBm for 30dB SINAD, typical
  • Image Rejection: >90dB
  • Dimensions: 1.7" H x 8.3" W x 6.3" D (44 x 212 x 160 mm)
  • Weight: 31.75 oz. (900 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external power supply
