Galaxy Audio DHTR/HH76SC
UHF Wireless Handheld Mic System (DHTR Receiver, HH76SC Handheld Mic/Transmitter)

OUR PART #:  DHTR/HH76SC

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.
Learn More
Selected Model Price: $409.99
List Price: $574.99
Save up to 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio DHTR/HH76SC
Select model: (shipping times are approximate)
Qty:

Similar Products

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.  The large LCD display shows channel number, frequency, lock mode, and volume output.  The DHT receiver has an easy to read RF and AF indicator.  The UHF diversity antennas ensure quality operation.

Includes HH76 cardioid dynamic handheld mic/transmitter.

System Features:

  • 300 ft. Range
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount Included

HH76SC Handheld Mic/Transmitter Features:

  • Super Dynamic Cardioid Element
  • On/Off/Mute Button
  • LCD Display (Battery Life Indicator Group and Channel Indicator)
  • 3 Battery Life Indicator
  • Channel Selector
  • Gain Control/Adjustment
  • IR Sync
  • Lock Function
  • 10 mW
  • 8.5 oz. (240 g)

HH76SC Specifications:

  • Max Audio input level: 0dBV
  • Dimensions: 9.5" x 2.1" dia. (242mm x 54mm dia.)
  • Weight: 10.6 oz. (300 g) (without batteries)
  • Power Requirements: 2 "AA" size alkaline or rechargeable batteries
  • Battery Life: About 6 hours

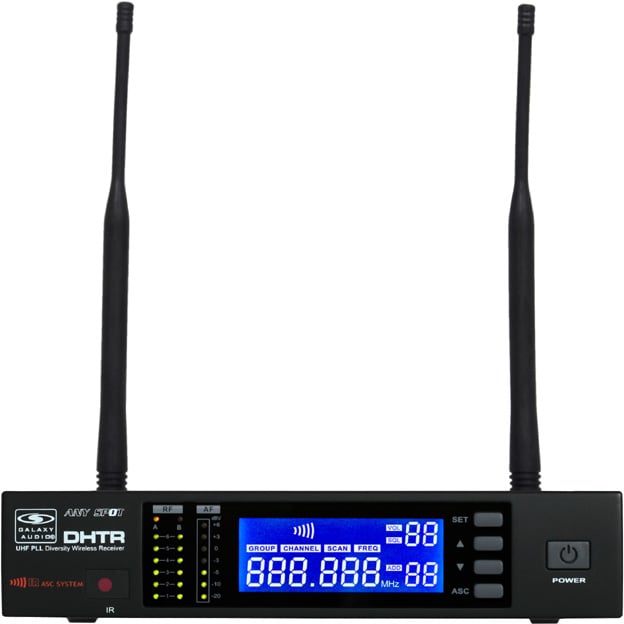

DHTR Features:

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • XLR/ 1/4" Output

DHTR Specifications:

  • Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV ┬╝" connector (into 3KOhms load) -18dBV
  • Output Impedance: XLR connector 200Ohms ┬╝" connector 1KOhms
  • XLR output: Impedance balanced
    - Pin 1: Ground (cable shield)
    - Pin 2: Audio
    - Pin 3: No Audio
  • Sensitivity: -93dBm for 30dB SINAD, typical
  • Image Rejection: >90dB
  • Dimensions: 1.7" H x 8.3" W x 6.3" D (44 x 212 x 160 mm)
  • Weight: 31.75 oz. (900 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external power supply
