Galaxy Audio DHTR/76LV
UHF Wireless Lapel Mic System (DT Receiver, MBP76 Body Pack Transmitter, Unidirectional Lav Mic)

OUR PART #:  DHTR/76LV

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.
Learn More
Selected Model Price: $399.99
List Price: $559.99
Save up to 29%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Galaxy Audio DHTR/76LV
Select model: (shipping times are approximate)
Qty:

Similar Products

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.  The large LCD display shows channel number, frequency, lock mode, and volume output.  The DHT receiver has an easy to read RF and AF indicator.  The UHF diversity antennas ensure quality operation.

Comes with a unidirectional lavalier mic. (Not pictured)

System Features:

  • 300 ft. Range
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount Included

MBP76 Features:

  • IR Sync
  • 2 AA Batteries
  • Mic/0/-10 dB
  • Channel Selector
  • On/Off / Mute Button
  • 3 Bar Battery Life
  • Indicator
  • Button Lock
  • LCD Display
  • 10 mW
  • 3 oz. (85 g)

MBP76 Specifications:

  • Max Audio Input Level:
    - 0 dBV maximum at mic gain position.
    - +10 dBV maximum at 0 dB gain position.
    - +20 dBV maximum at 10 dB gain position.
  • Gain Adjustment Range: 30dB
  • Input Impedance: 470 kOhm
  • Dimensions: 3.5" H x 2.6" W x 1" D (89 x 65 x 24 mm)
  • Weight: 3.0 oz. (85 g) (without batteries)
  • Power Requirements: 2 AA Batteries alkaline or rechargeable batteries
  • Battery Life: About 6 hours

DHTR Features:

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • XLR/ 1/4" Output

DHTR Specifications:

  • Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV ┬╝" connector (into 3KOhms load) -18dBV
  • Output Impedance: XLR connector 200Ohms ┬╝" connector 1KOhms
  • XLR output: Impedance balanced
    - Pin 1: Ground (cable shield)
    - Pin 2: Audio
    - Pin 3: No Audio
  • Sensitivity: -93dBm for 30dB SINAD, typical
  • Image Rejection: >90dB
  • Dimensions: 1.7" H x 8.3" W x 6.3" D (44 x 212 x 160 mm)
  • Weight: 31.75 oz. (900 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external power supply

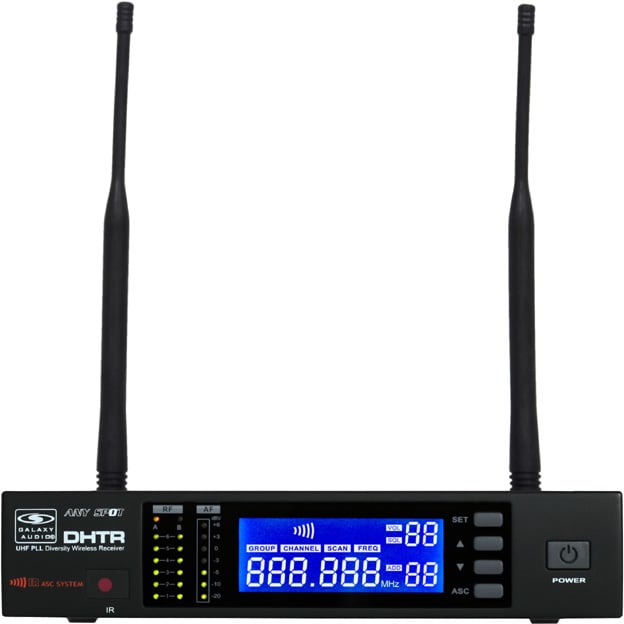

DHT Receiver
Galaxy Audio DHTR DHT Receiver
Galaxy Audio's DHTR receiver features Auto Scan, which searches for an available frequency to use, and then IR Syncs the frequency to a transmitter.  The large LCD display shows channel number, frequency, lock mode, and volume ...
