Galaxy Audio DHTR/76GTR
Wireless Guitar System, DHTR Receiver & MBP76 Body Pack Transmitter

OUR PART #:

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

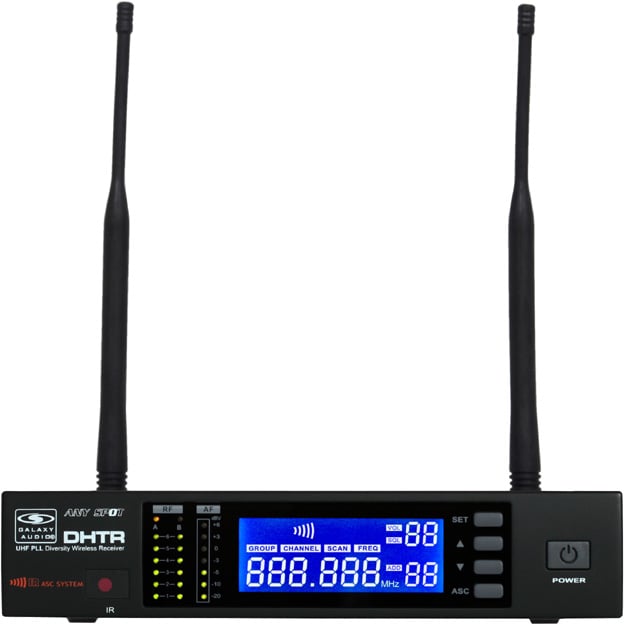

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.  The large LCD display shows channel number, frequency, lock mode, and volume output.  The DHT receiver has an easy to read RF and AF indicator.  The UHF diversity antennas ensure quality operation.

System Features:

  • 300 ft. Range
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount Included

MBP76 Features:

  • IR Sync
  • 2 AA Batteries
  • Mic/0/-10 dB
  • Channel Selector
  • On/Off / Mute Button
  • 3 Bar Battery Life
  • Indicator
  • Button Lock
  • LCD Display
  • 10 mW
  • 3 oz. (85 g)

MBP76 Specifications:

  • Max Audio Input Level:
    - 0 dBV maximum at mic gain position.
    - +10dBV maximum at 0 dB gain position.
    - +20 dBV maximum at 10 dB gain position.
  • Gain Adjustment Range: 30dB
  • Input Impedance: 470 kOhm
  • Dimensions: 3.5" H x 2.6" W x 1" D (89 x 65 x 24 mm)
  • Weight: 3.0 oz. (85 g) (without batteries)
  • Power Requirements: 2 AA Batteries alkaline or rechargeable batteries
  • Battery Life: About 6 hours

DHTR Features:

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Squelch Adjustment
  • XLR/ 1/4" Output

DHTR Specifications:

  • Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV ┬╝" connector (into 3KOhms load) -18dBV
  • Output Impedance: XLR connector 200Ohms ┬╝" connector 1KOhms
  • XLR output: Impedance balanced
    - Pin 1: Ground (cable shield)
    - Pin2: Audio
    - Pin 3: No Audio
  • Sensitivity: -93dBm for 30dB SINAD, typical
  • Image Rejection: >90dB
  • Dimensions: 1.7" H x 8.3" W x 6.3" D (44 x 212 x 160 mm)
  • Weight: 31.75 oz. (900 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external powersupply
