Galaxy Audio DHTR/HH64SC
Wireless Handheld Mic System (DHTR Receiver, HH64SC Handheld Mic/Transmitter)

OUR PART #:

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Galaxy Audio's DHT system has Auto Scan, which will search for an available frequency to use, and then IR Sync the frequency to a transmitter.  The large LCD display shows channel number, frequency, lock mode, and volume output.  The Galaxy Audio DHT receiver has an easy to read RF and AF indicator.  The UHF diversity antennas ensure quality operation.

System Features:

  • 300 ft. Range
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount (included)
  • HH64SC cardioid condenser handheld mic/transmitter(included)

HH64SC Handheld Mic/Transmitter Features:

  • Super Dynamic Cardioid Condenser Element
  • LCD Display (Battery Life Indicator Group and Channel Indicator)
  • 4 Battery Life Indicator
  • Gain Adjustment
  • IR Sync
  • 10 mW
  • 10.6 oz. (300 g)

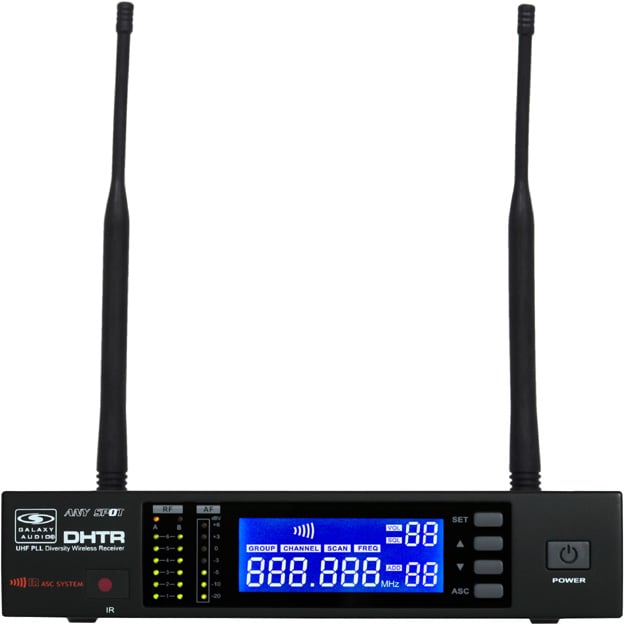

DHTR Features:

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • XLR/ 1/4" Output

DHTR Specifications:

  • Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into600 Ohms load) -12dBV ┬╝" connector (into 3KOhms load) -18dBV
  • Output Impedance: XLR connector 200Ohms ┬╝" connector 1KOhms
  • XLR output: Impedance balanced
    - Pin 1: Ground (cable shield)
    - Pin2: Audio
    - Pin 3: No Audio
  • Sensitivity: -93dBm for 30dB SINAD, typical
  • Image Rejection: >90dB
  • Dimensions: 1.7" H x 8.3" W x 6.3" D (44 x 212 x 160 mm)
  • Weight: 31.75 oz. (900 g)
  • Power Requirements: 12-18 V dc at 400mA, supplied by external power supply

NOTE: Microphone specifications are forthcoming.
