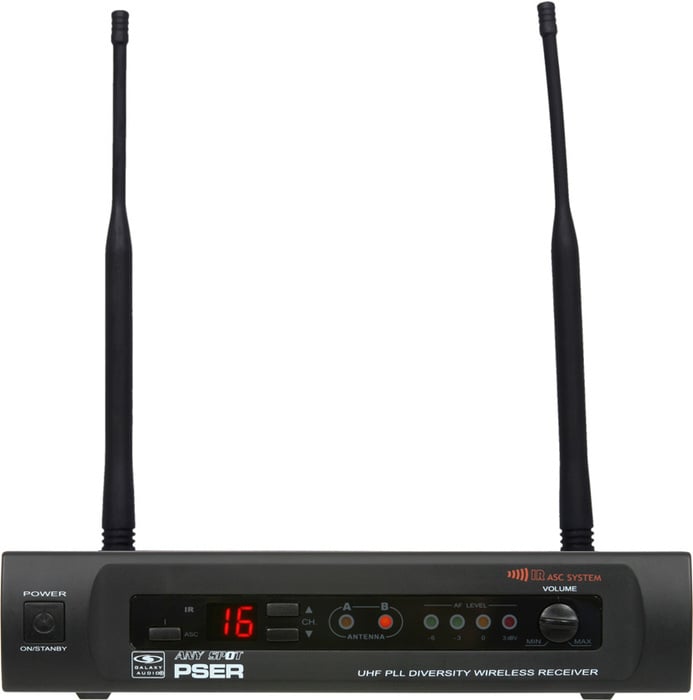

Galaxy Audio PSER 16-Channel UHF Wireless Mic Receiver

Features:

• Output Volume Control
• AF Level Indicator
• IR Sync
• Squelch Adjustment
• XLR/¼" Outputs

Specifications:

• Audio Output Level: (+/-30KHz deviation, 1KHz tone) XLR connector (into 600 Ohms load) -12dBV ¼" connector (into 3KOhms load) -18dBV
• Output Impedance: XLR connector 200Ohms ¼" connector 1KOhms
• XLR output: Impedance balanced
  • Pin 1: Ground (cable shield)
  • Pin 2: Audio
  • Pin 3: No Audio
• Sensitivity: -93dBm for 30dB
• Image Rejection: >90dB
• Dimensions: 1.7" H x 8.3" W x 6.3" D (44 x 212 x 160 mm)
• Weight: 31 oz. (880 g)
• Power Requirements: 12-18 V dc at 400mA, supplied by external power supply
