OUR PART # PODMIX

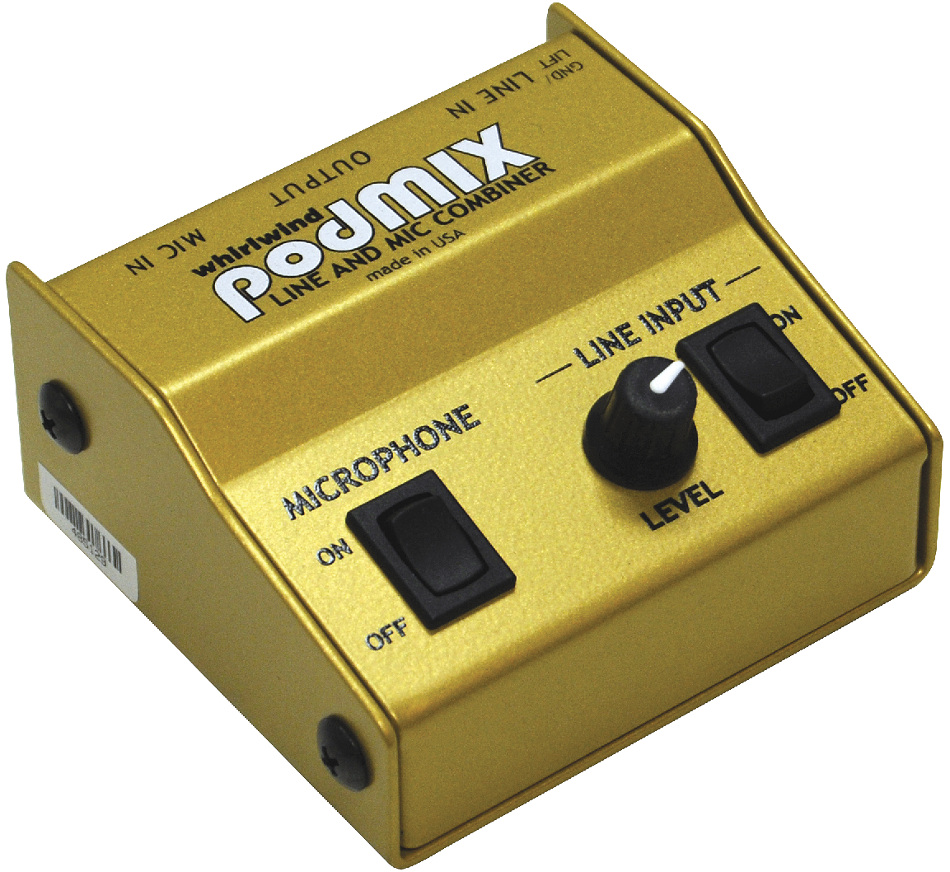

The podMIX is a passive mixer that combines a microphone with a stereo, line level audio source for connection to a single channel input of a sound system. It can also be used as a high quality DI box.
Use it to combine your microphone with a CD or MP3 player, computer, DJ mixer, etc., for paging and announcing over background music in banquet halls, sports arenas and party houses.
Accepts the stereo line inputs via 1/8" stereo jack or dual RCA phono jacks and sums them with the microphone into a single balanced mono output. These are wired in parallel and can be used as a loop thru from one to the other.
A variable attenuator on the line input allows level matching and mixing between the music source and the microphone. Mute switches on both the mic and line inputs provide convenient on / off control of each signal.
The podMIX works with both dynamic and condenser microphones and passes phantom power from the output to the mic input. It also features a ground lift switch on the line input to help eliminate hum and buzz.
