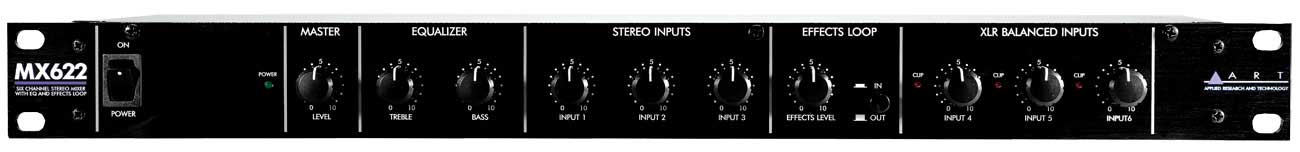

ART MX622 6-Channel 1RU Stereo Mixer with EQ and EFX Loop

The MX622 is a versatile mixer combining three balanced microphone or line level inputs with three stereo line inputs into a single stereo line level mix. Essential features include external effects loop (mono send with stereo return), independent stereo record outputs, stereo TRS 1/4-inch balanced outputs and full range master two-band equalizer. The internal power supply and single-rackspace, 19”, rackmount format allows for easy installation and reliable long-term operation.

Features

• 3 balanced XLR inputs with switchable mic/line level
• Level control and clip indicators
• Balanced TRS 1/4" main outs with master level control
• Separate stereo record outs
• Three stereo RCA inputs with separate level controls

Specifications

• Input Connections:
  • XLR-F balanced (x3)
  • 1/4" unbalanced (x2)
  • 3 pairs stereo RCA (6 total)
• Output Connections:
  • TRS balanced 1/4" (x2)
  • 1/4" unbalanced (x1)
  • RCA (x2)
• Input Impedance:
  • 600/22k ohms mic/line XLR inputs
  • 10k ohms RCA inputs
  • 22k ohms 1/4" effects returns
• Output Impedance:
  • 50 ohms 1/4" main outputs
  • 1k ohms RCA record outputs
  • 100 ohms effects output
• Maximum Input Level:
  • -10dBu/+20dBu mic/line XLR inputs
  • +20dBu RCA line inputs
  • +20dBu effects inputs
• Maximum Output Level:
  • +24dBu/+20dBu mic/line XLR inputs
  • +20dBu RCA line inputs
  • +20dBu effects inputs
• Phantom Power: +15 Volts DC (regulated/low noise)
• Maximum Gain:
  • 56dBu/26dB mic/line
  • 26dB RCA inputs
• Signal to Noise Ratio: >90dB typical
• THD: .01% typical
• Equalizer Range: +/-12dB @ 100Hz & 10kHz
• Power Requirements: 105 to 125 VAC; 50-60kHz, 15 Watts typical
• Dimensions (H x W x D): 1.75" x 19" x 6"
• Weight: 6.2 lbs
