Neutrik NC3MXX-B-CRYSTAL
3-Pin XLR-M Cable Connector with Swarovski Crystals and Gold Contacts

OUR PART #:  NC3MXX-B-CRYSTAL

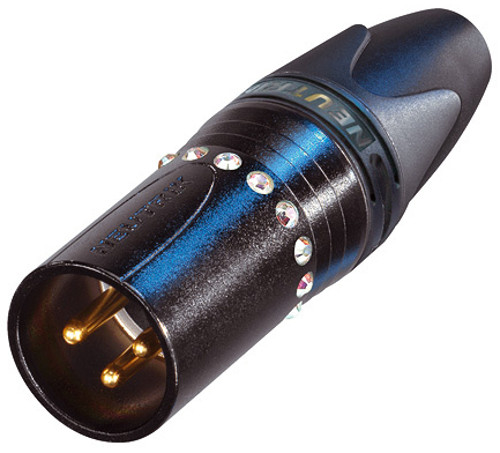

The Neutrik NC3MXX-B-CRYSTAL is a 3-pin XLR-M cable connector with CRYSTALLIZED (TM) Swarovski Elements, black metal housing, and gold contacts.
Learn More
Our Price: $20.94
List Price: $29.05
Save up to 40% when you order by quantity!
  • Buy 25: $18.91 each.
  • Buy 50: $18.24 each.
  • Buy 100: $17.56 each.
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NC3MXX-B-CRYSTAL
Qty:
Similar Products

The Neutrik NC3MXX-B-CRYSTAL is a 3-pin XLR-M cable connector with CRYSTALLIZED (TM) Swarovski Elements, black metal housing, and gold contacts.

Electrical Specifications:

  • Capactiance between contacts: </= 4 pF
  • Contact resistance: </= 3 m Ohm
  • Insulation resistance, initial: > 10 G Ohm
  • Dielectric strength: 1500 V dc
  • Rated current: 16 A
  • Rated voltage: 50 V

Mechanical Specifications:

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: </= 20 N
  • Withdrawal force: </= 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material Specifications:

  • Boot: Polyurethane
  • Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
  • Contacts: Brass (CuZn39Pb3)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: made with CRYSTALLIZED (TM) - Swarovski Elements
  • Shell plating: Black chromium
  • Strain relief: Polyacetal (POM)

Environmental Specifications:

  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
