Bose ControlSpace CC-64
Control Center

OUR PART #:  CC-64

Related Products

The Bose ControlSpace CC-64 control center is a programmable networked controller that provides users with a simple and logical interface to their sound systems when using ControlSpace ESP processors and/or network-version PowerMatch® amplifiers. Because the controller is completely programmable, you can customize the sound system, making only certain controls available, and simplifying user interaction with the system.

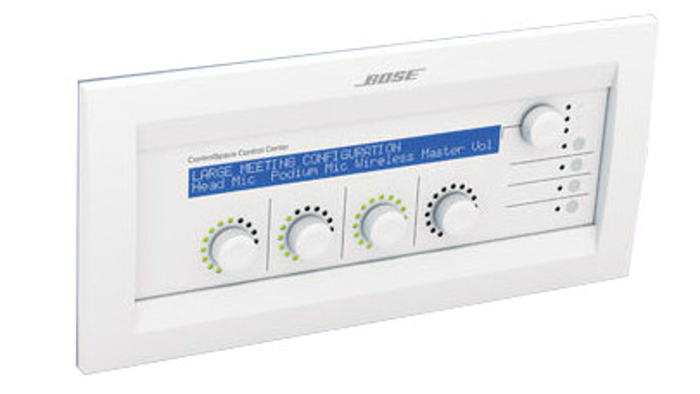

The CC-64 provides four rotary encoders with circular LED rings for a user-friendly method of managing gain settings or scene selections. A fifth encoder (upper right) provides control over programmed "scenes" or presets. Four bank switch buttons redefine the four Gain/Selector control knobs, providing quick access for up to 16 system gain controls or selectors. A large, two-line-by-40-character backlit LCD provides users the names of the system elements they are controlling. Each gain control knob can be programmed to control a single gain block or group of gain blocks. The group of gain device scan span elements of multiple ControlSpace ESP- 88 processors.

The combination of the rotary encoders and LED display allow real-time tracking of changes made elsewhere in the system. Using custom programming, the CC-64 can manage a variety of system elements, including audio sources, scene selection settings, and specific system configurations.

The CC-64 also supports a "custom mode"– intended for installers, not end-users – in which any parameter in the system can be viewed and changed using the LCD display and control knobs. The CC-64 is programmed – linking or mapping signal processing objects to its controls – using the ControlSpace Designer software. The software includes many features to simplify programming including Smart Simulation. This feature includes a virtual CC-64 display where all programming can immediately be verified on-screen — without going "online" or connecting to hardware.

Customizable on-screen wording on the CC-64 provides easier system operation for a wide range of applications, including houses of worship, auditoriums, schools and universities, and ballrooms.

Bose ControlSpace CC-64 Features:

  • Easy-to-read dynamic labeling for simplified end-user operation
  • 2-line by 40-character backlit LCD screen
  • Four gain/selector control knobs (rotary/push) with LED rings
  • Four bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls
  • One master scene/preset recall knob (rotary scroll/push to select)
  • Simplified drag-and-drop setup using ControlSpace® Designer™ software
  • Customizable on-screen wording provides easier system operation
  • Supports programming of easy-to-select scenes, allowing multiple room usage scenarios to be recalled from the CC-64 by end-users
  • Programmable software lock-out
  • Fits into a standard 5-gang electrical wall box

Bose ControlSpace CC-64 Specifications:

  • Connectors:
    • Network: RJ-45 (10 Base - T Ethernet)
    • Power: Euroblock 2-pin (included)
  • Maximum Cable Length: 328 ft (100 m)
  • Maximum Number of Units Per System: 16 per ControlSpace® network
  • Power Supply Requirement: 15 to 24 VDC, 300 mA, using local power input or over modified Cat-5 cable
  • Bose Part #: 41760
