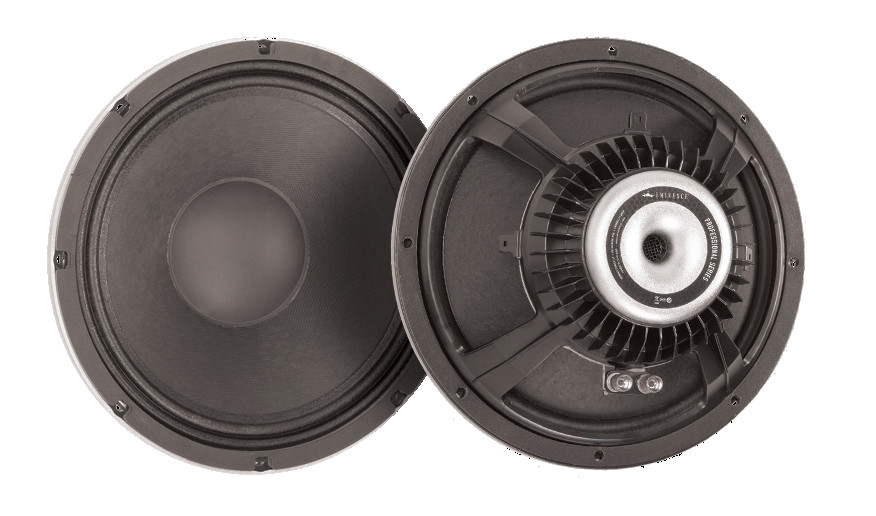

OUR PART #: KAPPALITE 3012HO
Recommended for vented professional audio enclosures for full-range or as mids. ...Read more
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service
Recommended for vented professional audio enclosures for full-range or as mids.
Specification
Nominal Basket Diameter 12", 305mm
Nominal Impedance* 8 ohms
Power Rating**
Watts 400W
Music Program 800W
Resonance 52Hz
Usable Frequency Range 51Hz - 3.5kHz
Sensitivity*** 100.5dB
Magnet Weight 11 oz.
Gap Height 0.36", 9.27mm
Voice Coil Diameter 3", 76.2mm
Mounting Information
Recommended Enclosure Volume
Sealed 28-76 liters / 1-2.7 cu.ft.
Vented 41-110 liters / 1.5-3.9 cu.ft.
Driver Volume Displaced 93.6 cu.in. / 1.53 liters
Overall Diameter 12.38", 314.45mm
Baffle Hole Diameter 11.06", 280.9mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.28", 7.1mm
Mounting Holes B.C.D. 11.62", 295.2mm
Depth 5.63", 143mm
Net Weight 7.1 lbs, 3.22 kg
