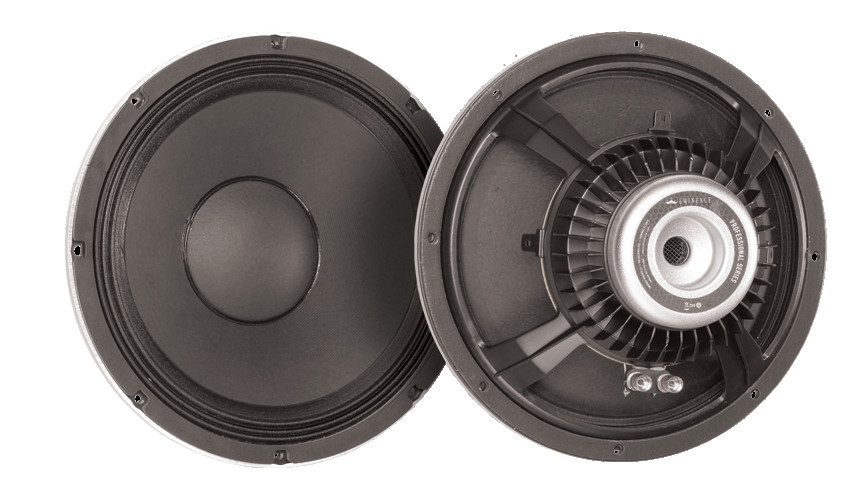

Eminence KAPPALITE 3012LF 12" Woofer

Recommended for pro audio and bass in vented enclosures.

SpecificationNominal Basket Diameter 12", 305mm

Nominal Impedance* 8 ohms

Power Rating**

Watts 450W

Music Program 900W

Resonance 37Hz

Usable Frequency Range 46Hz - 2kHz

Sensitivity*** 95.5dB

Magnet Weight 11 oz.

Gap Height 0.36", 9.27mm

Voice Coil Diameter 3", 76.2mm

Mounting Information

Recommended Enclosure Volume

Sealed 23-59 liters / 0.8-2.1 cu.ft.

Vented 37-85 liters / 1.3-3 cu.ft.

Driver Volume Displaced 95.3 cu.in. / 1.56 liters

Overall Diameter 12.38", 314.45mm

Baffle Hole Diameter 11.06", 280.9mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket Fitted as standard

Mounting Holes Diameter 0.28", 7.1mm

Mounting Holes B.C.D. 11.62", 295.2mm

Depth 6", 152.4mm

Net Weight 7.6 lbs, 3.45 kg
