Eminence KAPPA PRO-12A 12" Woofer

OUR PART #: KAPPA PRO-12A

Copied to clipboard

High efficiency pro audio driver for vented mid-bass, and vented bass enclosures. ...Read more

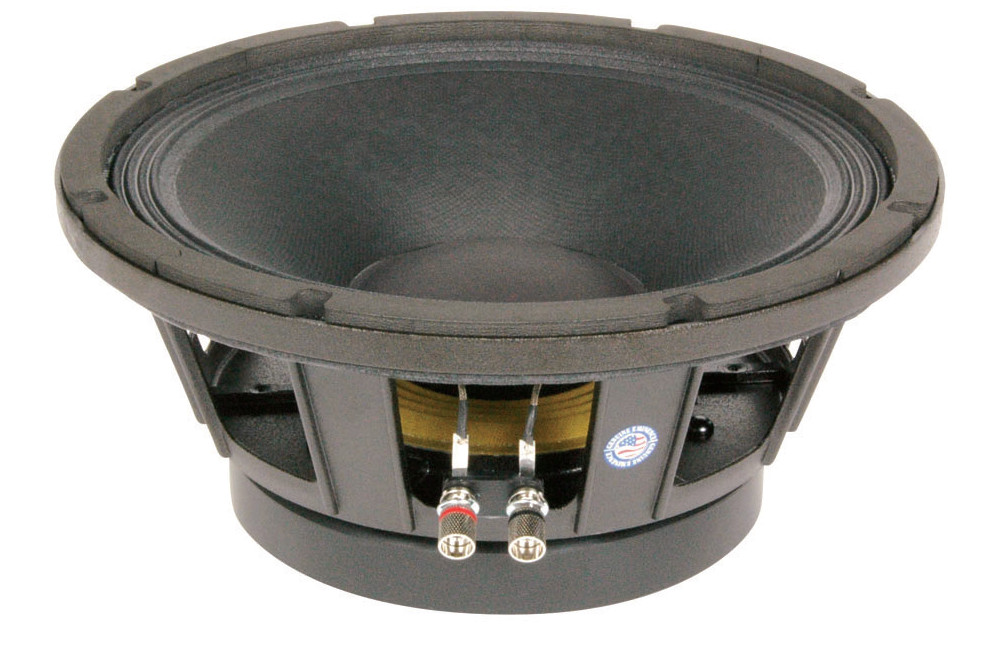

Eminence KAPPA PRO-12A 12" Woofer Image 1
Eminence KAPPA PRO-12A 12" Woofer
Our Price: $174.99
List Price: $214.99
You save 19%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$5/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

High efficiency pro audio driver for vented mid-bass, and vented bass enclosures.

Specification

Nominal Basket Diameter 12", 304.8mm

Nominal Impedance* 8 ohms

Power Rating**

Watts 500W

Music Program 1000W

Resonance 37Hz

Usable Frequency Range 57Hz - 2.8kHz

Sensitivity*** 97.1dB

Magnet Weight 80 oz.

Gap Height 0.37", 9.53mm

Voice Coil Diameter 3", 76.2mm

Mounting Information

Recommended Enclosure Volume

Sealed N/a

Vented 17-34 liters / 0.6-1.2 cu.ft.

Driver Volume Displaced 155.5 cu.in. / 2.55 liters

Overall Diameter 12.38", 314.5mm

Baffle Hole Diameter 11.07", 281.1mm

Front Sealing Gasket Fitted as standard

Rear Sealing Gasket Fitted as standard

Mounting Holes Diameter 0.27", 6.98mm

Mounting Holes B.C.D. 11.69", 296.93mm

Depth 6.22", 158mm

Net Weight 16.6 lbs, 7.5 kg

Shipping Weight 18.4 lbs, 8.4 kgs
