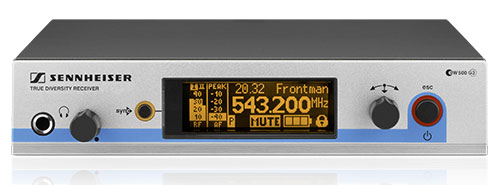

Sennheiser EM500-G3 Rackmount Receiver

OUR PART #: EM500-G3 MFR #: 503658

Copied to clipboard

The EM 500 G3 professional receiver provides the most features and performance the Sennheiser evolution series has to offer. ...Read more

Sennheiser EM500-G3 Rackmount Receiver Image 1
Sennheiser EM500-G3 Rackmount Receiver
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The EM 500 G3 professional receiver provides the most features and performance the Sennheiser evolution series has to offer. It begins with an especially high number of presets possible per frequency bank (32), making setup of many wireless systems a breeze. The built-in Ethernet port allows computer control and monitoring with a PC running Sennheiser’s Wireless System Manager software. The large graphic display provides a great deal of additional information at a glance. One-touch sync function automatically links up a G3 transmitter with this receiver. Lastly, the switching power supply is ideal for touring acts and rental companies who need a wireless that can be powered from worldwide sources.

Includes:

  • 1 EM 500 G3 rack-mount receiver
  • 1 GA 3 rack mount
  • 1 NT 2 power supply unit
  • 2 antennas
  • Operating instructions

Features:

  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 32 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Receiver shows transmitter battery indicatation in 4 steps
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Integrated Equalizer and Soundcheck mode
  • Wide range of accessories adapts the system to any requirement
  • Sturdy metal housing

Specifications:

  • RF frequency range: 516..... 865 MHz
  • Transmission/receiving frequencies: 1680
  • Presets: max 32
  • Switching bandwidth: 42 MHz
  • Peak deviation: +/- 48 kHz
  • Compander: HDX
  • Frequency response (microphone): 25.....18000 Hz
  • Signal-to-noise ratio: > 115 dB(A)
  • THD, total harmonic distortion: < 0,9 %
  • In compliance with: ETS 300422 , ETS 300445 , CE , FCC
  • Antenna connector: 2 BNC, 50 Ohm
  • Audio-XLR connector: XLR / 6,3 mm jack
  • Audio output level (balanced): XLR: +18 dBu max
  • Audio output level (unbalanced): Jack: +12 dBu max
  • Dimensions (Receiver): 212 x 202 x 43 mm
  • Weight (Receiver): 980 g
