Sennheiser EW 312 G3
Wireless Bodypack Microphone System with ME2 Lavalier

OUR PART #  EW312-G3

Selected Model Price: $849.95
List Price: $1,069.00

Save up to 20%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Recommended Accessories

The ew 312 G3 wireless lavalier system offers communication in harmony: when the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.

Features:

  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-freereception
  • Enhanced frequency bank system with up to 24 compatible frequencies
  • Ethernet port for connecting to the Wireless Systems Manager (WSM)software for control via computer - this delivers a good overview ofmonitoring and professional data management for multi-channel systems
  • High-quality true diversity reception
  • Pilot tone squelch for eliminating RF interference when transmitter isturned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown onreceiver display
  • Programmable Mute function
  • Integrated Equalizer and Soundcheck mode
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitter parameter from receiver
  • User-friendly menu operation with more control options
  • Illuminated graphic display, receiver also shows transmitter settings
  • Auto-Lock function avoids accidental changing of settings
  • Sturdy metal housing (transmitter and receiver)
  • Wide range of accessories adapts the system to any requirement

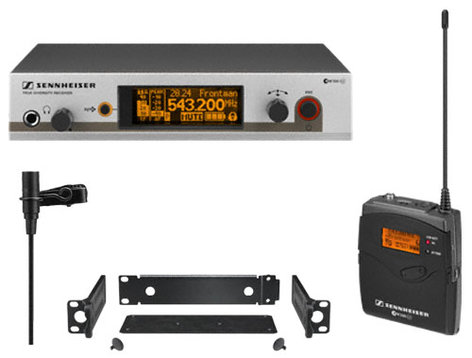

Includes:

  • 1 EM 300 G3 rack-mount receiver
  • 1 SK 300 G3 bodypack transmitter
  • 1 ME 2 clip-on microphone (omni-directional)
  • 1 GA 3 rack mount
  • 1 NT 2 power supply unit
  • 2 antennas
  • 2 AA batteries
  • Operating instructions

Specifications:

  • RF frequency range: 516 - 865 MHz
  • Transmission/receiving frequencies: 1680
  • Presets: 24
  • Switching bandwidth: 42 MHz
  • Peak deviation: +/- 48 kHz
  • Compander: HDX
  • Frequency response (microphone): 80 -18000 Hz
  • Signal-to-noise ratio: > 115 dB(A)
  • THD, total harmonic distortion: < 0,9 %
  • In compliance with: ETS 300422 , ETS 300445 , CE , FCC
  • Antenna connector: 2 BNC, 50 Ohm
  • Audio-XLR connector: 6.3 mm
  • Audio output level (balanced): XLR: +18 dBu max
  • Audio output level (unbalanced): Jack: +12 dBu max
  • Dimensions (Receiver):  8.35" x 7.95" x 1.69"
  • Weight (Receiver):  2.16 lbs
  • RF output power: 10/30 mW
  • Operating time (transmitter): > 8 h
  • Input voltage range: 1.8 V, line
  • Input voltage range: 2.4 V, line
  • Dimensions (Transmitter): 3.23" x 2.52" x  .94"
  • Weight (Transmitter): approx .35 lbs
  • Transducer; Microphone type: elektret
  • AF sensitivity: 20 mV/Pa
  • Sound pressure level (SPL): 130 dB(SPL) max.
  • Pick-up pattern: omni- directional
