Sennheiser ew 172 G3
Wireless Instrument Bodypack System with CI1 Instrument Cable

OUR PART #  EW172-G3

Selected Model Price: $499.95
List Price: $629.00

Save up to 21%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Recommended Accessories

The Sennheiser ew 172 G3 wireless instrument microphone system delivers exceptional sound due to the built-in, 5-band EQ and the AF frequency response.The ew 172 G3 system's cable emulator feature allows you to adjust virtual cable lengths to get sound response just like a cable. Another great feature for guitarists is the built-in guitar tuner, right on the display. A built-in 5 band EQ allows you to fine tune your sound even further. Bass players in particular will be pleased with the enhanced AF frequency response: it starts at a thundering 25 Hz, which will especially please players with 5 string bass guitars. Plug in and play.

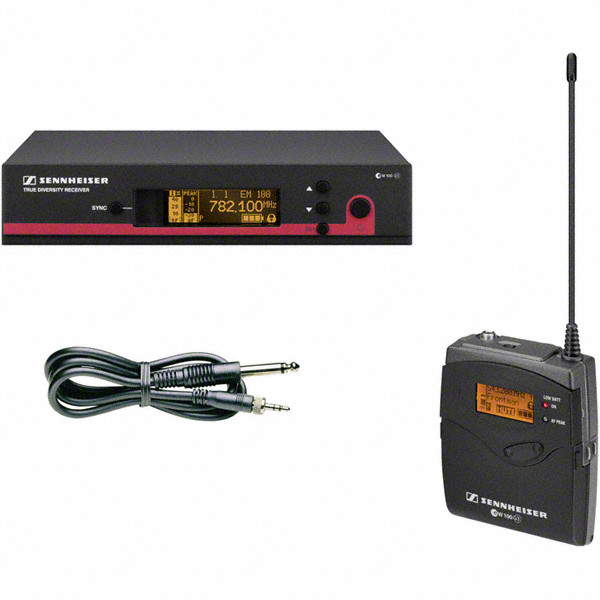

Sennheiser ew 172 G3 Includes:

  • 1 EM 100 G3 rack-mount receiver
  • 1 SK 100 G3 bodypack transmitter
  • 1 CI 1 instrument cable
  • 1 NT 2 power supply unit
  • 2 antennas
  • 2 stacking elements
  • 2 AA batteries
  • Operating instructions

Sennheiser ew 172 G3 Features:

  • Programmable Mute function
  • Integrated Equalizer, Soundcheck mode and guitar tuner
  • Contacts for recharging BA 2015 accupack directly in the transmitter
  • 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
  • Enhanced frequency bank system with up to 12 compatible frequencies
  • High-quality true diversity reception
  • User-friendly menu operation with more control options
  • Illuminated graphic display (transmitter and receiver)
  • Auto-Lock function avoids accidental changing of settings
  • HDX compander for crystal-clear sound
  • Transmitter feature battery indicatation in 4 steps, also shown on receiver display
  • Pilot tone squelch for eliminating RF interference when transmitter is turned off
  • Automatic frequency scan feature searches for available frequencies
  • Enhanced AF frequency range
  • Increased range for audio sensitivity
  • Wireless synchronization of transmitters via infrared interface
  • Wide range of accessories adapts the system to any requirement
  • Sturdy metal housing (transmitter and receiver)

Sennheiser ew 172 G3 Specifications:

  • RF frequency range: 516 - 865 MHz
  • Transmission/receiving frequencies: 1,680
  • Presets: 12
  • Switching bandwidth: 42 MHz
  • Peak deviation: +/- 48 kHz
  • Compander: HDX
  • Frequency response: 25 -18,000 Hz
  • Signal-to-noise ratio: > 110 dB(A)
  • THD, total harmonic distortion: < 0,9 %
  • In compliance with: ETS 300422 , ETS 300445 , CE , FCC
  • Antenna connector: 2 BNC, 50 Ohm
  • Audio-XLR connector: 1/4"
  • Audio output level (balanced): XLR: +18 dBu max
  • Audio output level (unbalanced): Jack: +12 dBu max
  • Dimensions (Receiver): 212 x 202 x 43 mm
  • Weight (Receiver): 900 g
  • RF output power: 30 mW
  • Operating time (transmitter): typ. 8 hours
  • Input voltage range: 3,0 V eff line
  • Dimensions (Transmitter): 3.22" x 2.52"x  .94"
  • Weight (Transmitter): 5.64 oz
