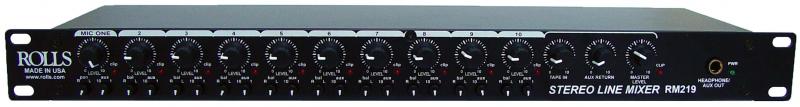

Rolls RM219
Stereo Line Mixer, Black

OUR PART #:  RM219

The RM219 Stereo Line Mixer is a line-level mixer with nine channels of stereo 1/4" inputs, a single XLR mic input, a tape input and output provided via stereo RCA jacks...
Learn More
Our Price: $255.00
List Price: $335.00
You save 24%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Rolls RM219
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The RM219 Stereo Line Mixer is a line-level mixer with nine channels of stereo 1/4" inputs, a single XLR mic input, a tape input and output provided via stereo RCA jacks, and a mono auxiliary send and stereo returns. Each channel has a signal level control, a right/left balance control, an auxiliary level control, and a clip LED indicator.

The master section of the RM219 has a tape input level control, an auxiliary return level control, and a master output volume control. It also offers a headphone output with level control provided by the master level controls.

Rolls RM219 Features:

  • 9 Stereo Inputs
  • RCA Tape Inputs and Outputs
  • Balanced 1/4" TRS Outputs
  • Headphone Output
  • Master Output Level Control
  • Balance Control for Each Channel
  • Auxiliary Send Control for Each Channel
  • One XLR Mic Input with 12VDC Phantom Power
  • Mono Auxiliary Send
  • Stereo Auxiliary Returns
  • Clip Indication on Each Channel
  • External Power Supply (included) for Quiet Operation

Rolls RM219 Specifications:

  • Input Impedance:
  • Line: 10K Ohms unbalanced
  • Mic: 10K Ohms balanced
  • Phantom Power Voltage: +12 VDC
  • Output Impedance: 50 Ohms balanced
  • Max Input Level: +18 dBV
  • Phase Shift: < 10 deg. 20 Hz - 20 kHz
  • Connectors: 1/4” and RCA
  • Max Gain: 26 dB Line, 26 dB Aux
  • S/N Ratio: >90 dB
  • THD: < .003%
  • IMD (SMPTE): < .003%
  • Self Noise: < 82 dB
  • Power: 120 VAC 50-60 Hz, 15 W
  • Weight: 7 lbs (3kg)
  • Size: 19” x 1.75” x 6.5” (48cm x 4.5cm x 17cm)
