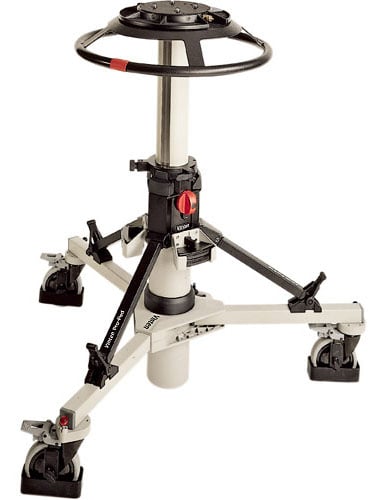

Vinten 3983-3C
Pro-Ped Studio Pedestal

OUR PART #  3983-3C

Call for price! Not available online.
List Price: $10,650.00


Recommended Accessories

The lightweight 3983-3C Pro Ped Studio Pedestal features a Mitchell flange-mount meant primarily for field use, and supports up to 120 lbs (55 kg). It features a self-pumping pneumatic counterbalance system capable of suspending the payload within a 32.0" (81.5 cm) range of travel, and is capable of seamless on-shot 16.1" (41.0 cm) movements. The large 6" (15 cm) wheels help move the Pro Ped across uneven surfaces, and it breaks down into manageable pieces without tools for transport.

Features:

  • 5.0" (12.5 cm) Studio casters with cable guards
  • Pneumatic counterbalance with 32.0" (81.5 cm) of travel
  • 21.0" (53.4 cm) Steering ring
  • Trim weights included for fine balance

Specifications:

  • Load Capacity: 120 lbs (55 kg)
  • Trim Weights: 7.5 lbs (3.4 kg)
  • Bowl Diameter/Thread: Mitchell flange
  • Steering Ring Diameter: 21.0" (53.4 cm)
  • Minimum Height: 26.2" (66.6 cm)
  • Maximum Height: 58.1" (147.5 cm)
  • Weight: 70.0 lbs (31.8 kg)
  • Post:
    Stages: 2
    On-Shot Stroke: 16.1" (41.0 cm)
  • Dolly:
    Doorway Tracking Width: 38.0" (97.0 cm)
    Transit Doorway Width: 34.0" (86.0 cm)
    Narrow Doorway Width: 27.5" (70.0 cm)
    Wheel Diameter: 5.0" (12.5 cm)
    Wheel Lock: Foot-operated
    Cable Guards: Yes
