Blackmagic Design CONVMASA
SDI to Analog Mini Converter

OUR PART #:  CONVMASA

Blackmagic Design's SDI to Analog Mini Converter includes everything you need to convert from SDI to analog in HD/SD component, NTSC and PAL video...
Learn More

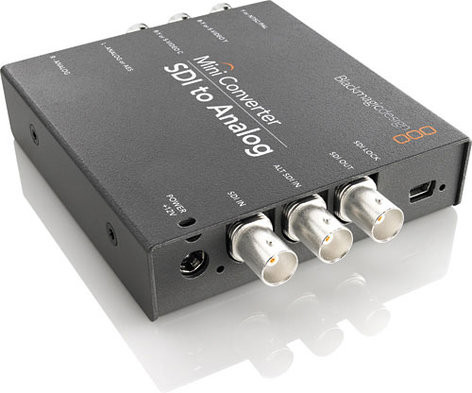

SDI to Analog Mini Converter
SDI to Analog Mini Converter - Back View
SDI to Analog Mini Converter - Top View

Click a thumbnail to see more images. (5 total)

Our Price: $185.25
List Price: $195.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CONVMASA
Qty:
In Stock

Similar Products

Blackmagic Design's SDI to Analog Mini Converter includes everything you need to convert from SDI to analog in HD/SD component, NTSC and PAL video, plus balanced AES/EBU and analog audio.  Now you can easily connect equipment such as Betacam SP, VHS, and analog video monitors to SDI based equipment.  Also features a built-in hardware down converter to connect HD-SDI video to SD analog equipment.

Blackmagic Design COMVMASA Specifications:

Connections:

  • SDI Video Input: Switchable between SD, HD and 3 Gb/s SDI
  • SDI Video Output: Automatically matches the SD, HD and 3 Gb/s SDI video input
  • Analog Video:
    • Component, NTSC, PAL and S-Video from SD-SDI input
    • Component HD from HD-SDI input.
  • Analog Audio: 2 channels of professional balanced analog audio with standard 1/4" jack connections
  • AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4" jack connections
  • SDI Redundant Input: Automatically switches over if main SDI input is lost
  • Multi Rate Support: Auto detection of HD or standard definition SDI inputs
  • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
  • Reclocking: Yes

Standards:

  • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601
  • SDI Video Rates: SDI video connections are switchable between standard definition and high definition
  • SDI Video Sampling: 4:02:02
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
  • SDI Color Precision: 4:02:02
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically selects between SD SDI, HD-SDI and 3 Gb/s SDI
  • SDI Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
  • Analog Format Support: 625/25 PAL, 525/29.97 NTSC, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60
  • Analog Color Space: YUV
  • Analog Color Precision:  4:02:02

Extras:

  • Software Control: Mac OS X™ and Windows™ software upgrade via USB
  • Internal Software Upgrade: Via included updater application
  • Settings Control: Mini Switches or USB software
  • Format Conversion: HD down conversion
  • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point
  • Power Consumption: 8.04 Watts
  • Operational Voltage Range: 12V
  • Product Warranty: 3 Year Limited Manufacturer's Warranty
