Radio Design Labs D-CIJ3D
Consumer Input Jacks, Stereo, RCA


Our Price: $89.53
List Price: $119.78
You save 25%! (Low Price Guarantee)
In Stock

The D-CIJ3D is designed for installations requiring stereo unbalanced line level audio sources to feed stereo balanced (or unbalanced) audio lines.

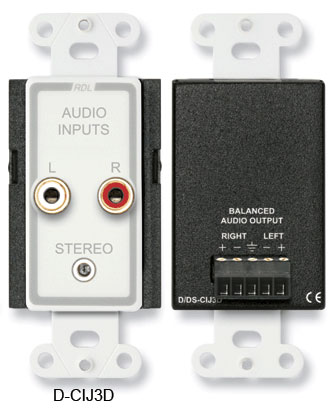

The D-CIJ3D is a complete unbalanced line-level audio input module. The front panel features two gold plated phono jacks and a single stereo mini-jack, intended for mono or stereo consumer level sources. An input signal may be connected to either the phono jacks or to the mini-jack. The inputs are balanced through audio transformers configured to reject induced hum. A stereo line-level output is provided on the rear-panel detachable terminal block for connection to 10 k ohms or higher input impedance line-level module or equipment inputs.


  • Input connectors (3): Phono jacks with gold contacts(Left and Right), Mini-jack 3.5 mm (Stereo)
  • Frequency response (line level): 50 Hz to 20 kHz (±1dB); 30 Hz to 20 kHz (±2 dB)
  • THD: <0.2% (1 kHz)
  • Output connector: Detachable terminal block
  • Dimensions:
    Height: 4.13 in. 10.49 cm
    Width: 1.7 in. 4.32cm
    Depth: 2.15 in. 5.47 cm
  • Mounting Box Minimum Dimensions:
    Width: 1.80 in. 4.57 cm
    Depth: 1.75in. 4.45 cm
  • Crosstalk: <-80 dB (1 kHz); <-60 dB (10 Hz to 20kHz)
  • Ambient Operating Environment: 0° C to 55° C
