Product Overview

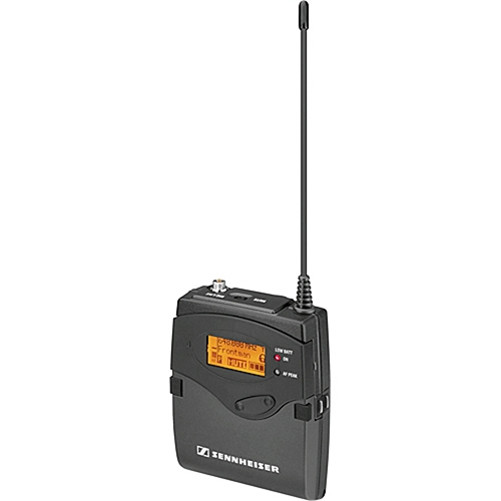

The SK2000 is a lightweight yet extremely rugged bodypack transmitter. With an AF frequency response of 25 to 20,000 Hz, it transmits even the sound of a bass guitar with rich fundamentals. Three RF output powers (four in the US version) provide longer transmission ranges or more channels per frequency range. The rechargeable batteries of the SK2000 (optional) can be charged right in the unit using the external charging contacts.

Features

  • Up to 75 MHz switching bandwidth
  • 20 fixed frequency banks with up to 64 compatible presets
  • 6 banks each with up to 64 tunable channels
  • Frquency setting in 25 kHz steps
  • Sturdy all-metal housing
  • Backlit display on transmitter (keystroke activation)
  • Pilot tone squelch for interference-free operation
  • Auto-lock feature to prevent buttons from being pressed accidentally
  • Audio and RF Mute feature for virtually any use
  • External charging contacts for recharging battery BA2015
  • Enhanced audio frequency response in the bass range for optimum transmission from bass guitars
  • Input sensitivity above 60 dB can be set in 3 dB steps
  • Transmitters can be configured from the receiver menu
  • Can be synchronized with the receiver using infrared interface
  • Wide range of accessories for virtually any use

Specifications

  • Available Frequency Bands:
    • A (516 - 558 MHz)
    • B (626 - 698 MHz)
    • G (558 - 626 MHz)
  • Dimensions: 82 x 64 x 24 mm
  • Compander: HDX
  • Audio-XLR connector: Sennheiser (3-pin) Socket
  • Presets: max. 64
  • Weight: 160 g
  • Signal-to-noise ratio: > 120 dB(A) (@ 1 mV, peak deviation)
  • RF output power: 10, 30, 50 mW (US: 100 mW)
  • Peak deviation: ±48 kHz
  • Nominal deviation: ±24 kHz
  • In compliance with: CE , FCC, IC
  • Operating time: typ. 8 h
  • Modulation: FM
  • Power supply: 2 x 1.5 V (AA)
  • Carrier frequencies: max. 3000
  • Input impedance
    • mic.: 40 kΩ
    • line: 1 MΩ
  • Max. Input voltage: 3 V (mic + line)
