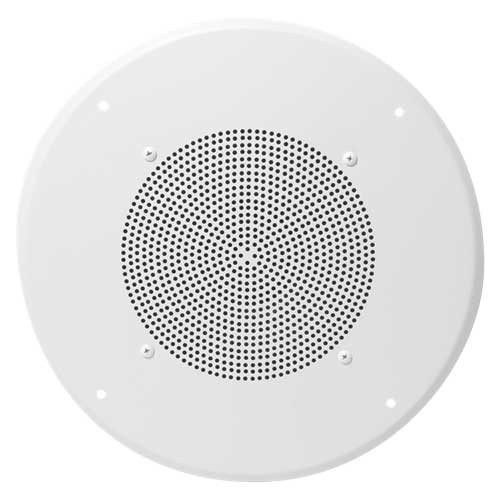

Atlas Sound UHT70C-U51-8
UL Listed 8" Loudspeaker for Fire Protective Signaling, 70V Transformer, U51-8 Baffle

OUR PART #:  UHT70C-U51-8

Atlas Sound's UHT70C-U51-8 are 8" diameter single voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz.
Learn More
Our Price: $63.99
List Price: $79.99
You save 20%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound UHT70C-U51-8
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Atlas Sound's UHT70C-U51-8 are 8" diameter single voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.

To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures.

Features

  • Attractive ceiling-loudspeaker/baffle assemblies provide unobtrusive appearance of life safety and emergency signaling loudspeakers
  • Listed under UL Standard 1480 (speakers for fire-protective signaling systems)
  • Selection of baffle styles and multi-tapped transformers meet a variety of aesthetic and application requirements
  • Selection of UL approved, companion enclosures is offered
  • UL listed, fire-retardant and moisture-proof cone loudspeakers reproduce emergency alarm and voice instructions with superior intelligibility and extended frequency response
  • Specifications
  • Depth: 2 7/8"
  • Diameter: 8"
  • Shipping Weight: 4.67 lbs
  • Frequency Response: 85Hz - 8kHz
  • Power Taps: .5, 1, 2, & 5 watts
  • Power Rating: 10 Watts
  • Sensitivity: 97dB peak, 94dB average
  • UL Listed/Standard: 1480
