Allen & Heath M-ACE-A
Ace-B Option Module 64 Channel Digital Split

OUR PART #:  M-ACE-A

The Allen & Heath M-ACE-A card provides two ACE ports. Port 1 is the main link.
Learn More
Our Price: $699.00
Write the first review.
Allen & Heath M-ACE-A
Qty:
Usually ships in 7-14 business days.

Related Products

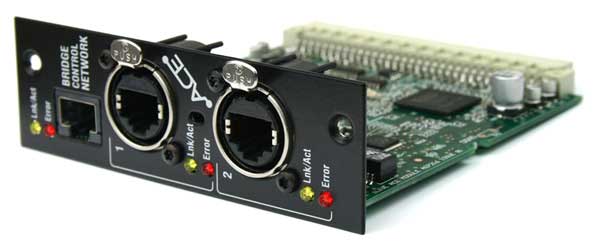

The Allen & Heath M-ACE-A card provides two ACE ports. Port 1 is the main link. Port 2 can be configured either as a mirror of the outputs appearing on port 1 to split signals to a second device, or as a second connection for redundant backup. The iLive NETWORK port can be linked to ACE Port 1 using the short CAT5 cable provided to bridge control over the same cable as the audio.

M-ACE is one of a range of digital audio networking options available for iLive and GLD to enable integration with other systems, digital mic splitting and system expansion. It can be fitted to the Port B expansion slot in iLive fixed format MixRacks (iDR-16, iDR-32, iDR-48, iDR-64) or expander (xDR-16), Port A/B in iLive modular MixRacks (iDR0, iDR10) and Port A of iLive modular surfaces if they are fitted with the new RAB-2 standard. It can also be fitted to the I/O Module expansion slot in a GLD-80 mixer.

The Allen & Heath M-ACE-A proprietary ACE (Audio and Control over Ethernet) link offers a cost effective point-to-point connection up to 120m over a single CAT5 cable for 64 channels of very low latency bi-directional audio plus network control. ACE is the primary iLive Surface to MixRack link and can be fitted to Port B for digital mic splitting and system expansion. For modular iLive systems fitted with RAB2, ACE is one of several choices for the Port A Surface to MixRack link.
