DB Technologies DVX-DM15 15" 2-Way Active Floor Monitor, 750W

OUR PART #: DVX-DM15 MFR #: DVX-DM15

Copied to clipboard

The dB Technologies DVX DM15 is a low-profile stage monitor. ...Read more

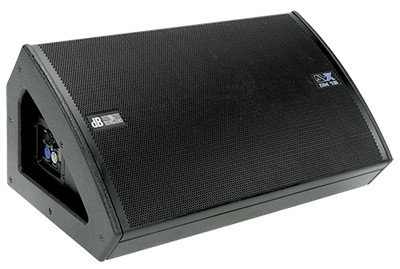

DB Technologies DVX-DM15 15" 2-Way Active Floor Monitor, 750W Image 1
DB Technologies DVX-DM15 15" 2-Way Active Floor Monitor, 750W
Our Price: $2,353.00
List Price: $2,800.00
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$66/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The dB Technologies DVX DM15 is a low-profile stage monitor. Unobtrusive yet very muscular, it is designed for sound reinforcement applications that require powerful low-end performance without added subwoofers. It sports a high-performance 15" neodymium woofer and a 1.4" neodymium compression driver, coupled to an aluminum CD horn. This combination's response across the human voice's full range is impressively assertive.

Paired with high-output digipro digital power amps in a bi-amped configuration, the DVX DM15 belies its unobtrusive look with performance that is far from understated, delivering plenty of power to cover midsized to large stages.

An onboard controller manages the entire system, serving as an active equalizer, active x-over with phase and time alignment, and limiter.

The DSP also offers switchable system presets that adapt the monitor’s performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.

It is also equipped with a pole mount, enabling the DVX DM15 to be set on a tripod or speaker pole.

dB Technologies DVX DM15 Specifications:

  • Speaker Type: 2-Way Active Stage Monitor
  • Acoustical data:
    • Frequency Response [-10dB]: 50 Hz - 20 kHz
    • Frequency Response [+/- 3dB]: 59 Hz - 19 kHz
    • Max SPL: 132 dB
    • HF: 1.4"
    • Type HF: Neodymium Compression Driver
    • Voice Coil HF: Titanium 2.5"
    • Directivity: 60x40°
    • Horn: CD Horn Aluminium
    • Rotatable Horn: Yes
    • LF: 15"
    • Type LF: Neodymium
    • Voice Coil LF: 3.5"
  • Amplifier:
    • Amp Technology: Digipro®
    • Amp Class: Class D
    • Power RMS: 750 W
    • Peak Power: 1500 W
    • Cooling: Convection
  • Processor:
    • Controller: DSP 24 Bit/48 kHz
    • System Presets: Flat, Monitor
    • Limiter: RMS, Peak. Thermal, Multiband
    • Crossover Frequency MF-HF: 1320 Hz
    • Slope MF-HF: 24 dB/Octave
  • Input:
  • Mechanics:
    • Housing: Multiplex birch plywood
    • Housing Design: Low Profile Multifunctional
    • Angles Up: 35, 55°
    • Rigging Points: 6x M8
    • Dimensions: 29.36" W x 13.52" H x 17.68" D (734 x 338 x 442 mm)
    • Weight: 46.3 lbs (21 kg)
