DB Technologies DVX-DM12 12" 2-Way Active Floor Monitor, 750W

OUR PART #: DVX-DM12 MFR #: DVX-DM12

Copied to clipboard

The dB Technologies DVX DM12 is an active bi-amped stage monitor. ...Read more

DB Technologies DVX-DM12 12" 2-Way Active Floor Monitor, 750W Image 1
DB Technologies DVX-DM12 12" 2-Way Active Floor Monitor, 750W Image 2
DB Technologies DVX-DM12 12" 2-Way Active Floor Monitor, 750W
Our Price: $2,118.00
List Price: $2,512.00
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$59/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

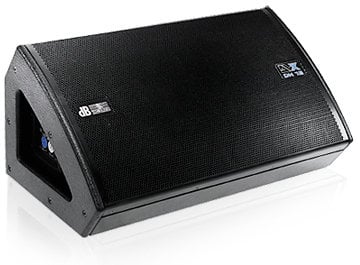

The dB Technologies DVX DM12 is an active bi-amped stage monitor. Powerful, assertive, and engineered for professional applications, it is the perfect choice for midsized to large stages. Featuring a discrete, unobtrusive design, the ultra low-profi le enclosure sports a high-performance 12" neodymium woofer paired with a 1.4" neodymium compression driver and rotatable aluminum CD horn precision matched for on-stage monitoring.

Unlike conventional multifunctional speakers, the DVX DM 12 is a prograde performer developed specifically for use as a floor monitor. Optimized to resist feedback even at extremely high levels, it delivers the true-to-nature response and dynamic balance that today's artists demand.

The integrated digipro digital power amps deliver the requisite output. The switched-mode power supplies with PFC ensure touring rigs get all the juice they need to perform at their peak even when a venue’s mains power is weak and voltage is low.

The onboard controller encompasses an active equalizer, active x-over including phase and time alignment, limiters, and switchable system presets that adapt the monitor's performance to suit the given application.

Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles. It is also equipped with a pole mount, enabling the DVX DM12 to be set on a tripod or speaker pole

dB Technologies DVX DM12 Specifications:

  • Speaker Type: 2-Way Active Stage Monitor
  • Acoustical data:
    • Frequency Response [-10dB]: 55 Hz - 20 kHz
    • Frequency Response [+/- 3dB]: 68 Hz - 19 kHz
    • Max SPL: 131 dB
    • HF: 1.4"
    • Type HF: Neodymium Compression Driver
    • Voice Coil HF: Titanium 2.5"
    • Directivity: 40x90°
    • Horn: CD Horn Aluminium
    • Rotatable Horn: Yes
    • LF: 15"
    • Type LF: Neodymium
    • Voice Coil LF: 3"
  • Amplifier:
    • Amp Technology: Digipro®
    • Amp Class: Class D
    • Power RMS: 750 W
    • Peak Power: 1500 W
    • Cooling: Convection
  • Processor:
    • Controller: DSP 24 Bit/48 kHz
    • System Presets: Flat, Monitor
    • Limiter: RMS, Peak. Thermal, Multiband
    • Crossover Frequency MF-HF: 1320 Hz
    • Slope MF-HF: 24 dB/Octave
  • Input:
  • Mechanics:
    • Housing: Multiplex birch plywood
    • Housing Design: Low Profile Multifunctional
    • Angles Up: 35, 55°
    • Rigging Points: 6x M10, 4x Quick Release Pins
    • Dimensions: 14.8" W x 25" H x 15.8" D (660 x 305 x 378 mm)
    • Weight: 55.12 lbs (17.5 kg)
