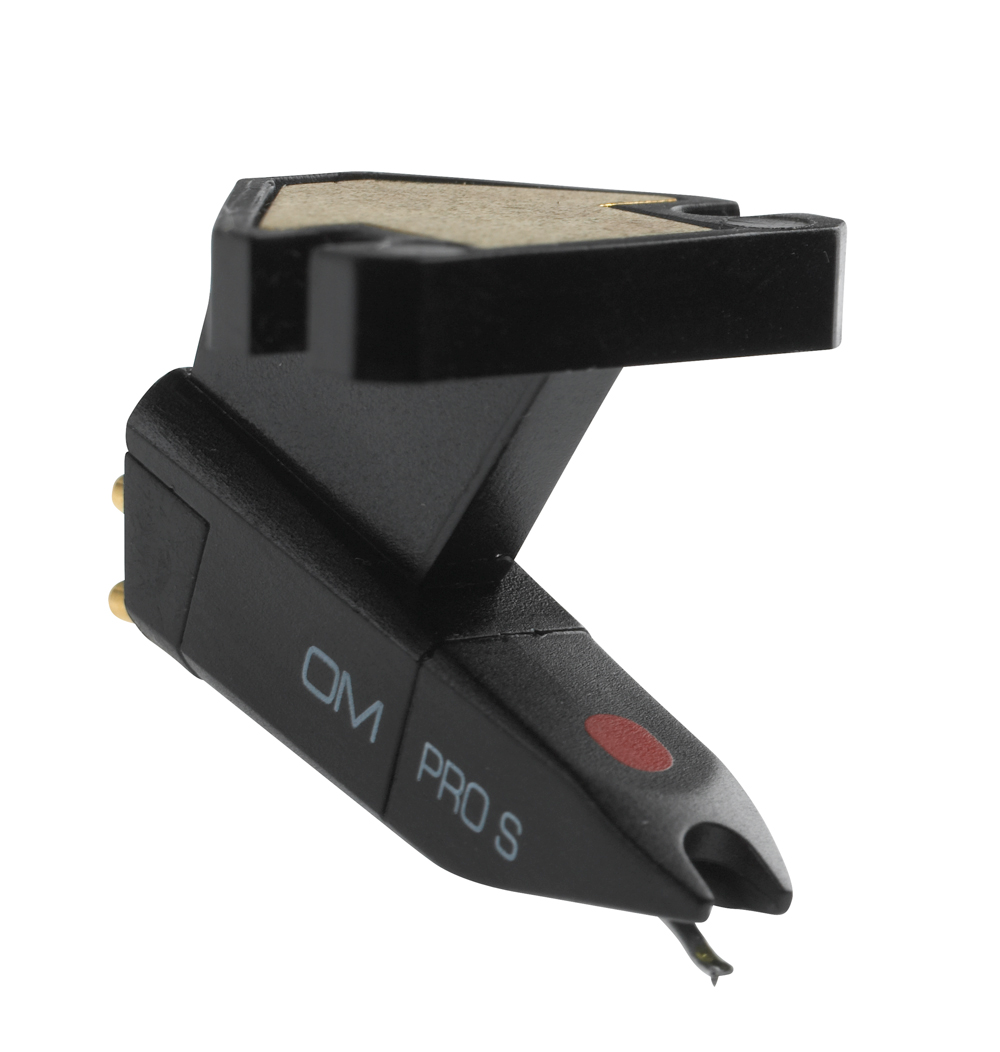

Ortofon Inc OM-PROS-SINGLE
OM Headshell Mount Cartridge

OUR PART #  OM-PROS-SINGLE

Our Price: $44.99
List Price: $50.99
You save 12%! (Low Price Guarantee)
In Stock

Ortofon's Pro-S retains the overall sonic properties of the Pro Silver, but provides a wider stylus for low wear as well as durability under demanding conditions.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 5 mV
  • Channel balance at 1kHz: 2 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20 Hz-20 kHz
  • Frequency response: 20 Hz-18 kHz +/- 2 dB
  • Tracking ability at 315 Hz at recommmende tracking force: 70 µm
  • Compliance, dynamic lateral: 7 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 26 µm
  • Tracking force range: 3,0-5,0 g (30-50 mN)
  • Tracking force recommended: 4,0 g (40 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g

Ortofon Inc OM-PROS-SINGLE
OM Headshell Mount Cartridge

OUR PART #  OM-PROS-SINGLE

Product Information:

Ortofon's Pro-S retains the overall sonic properties of the Pro Silver, but provides a wider stylus for low wear as well as durability under demanding conditions.

Specifications:

  • Output voltage at 1000Hz, 5cm/sec: 5 mV
  • Channel balance at 1kHz: 2 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20 Hz-20 kHz
  • Frequency response: 20 Hz-18 kHz +/- 2 dB
  • Tracking ability at 315 Hz at recommmende tracking force: 70 µm
  • Compliance, dynamic lateral: 7 µm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 26 µm
  • Tracking force range: 3,0-5,0 g (30-50 mN)
  • Tracking force recommended: 4,0 g (40 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 750 Ohm
  • Internal inductance: 450 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Cartridge weight: 18,5 g
Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
