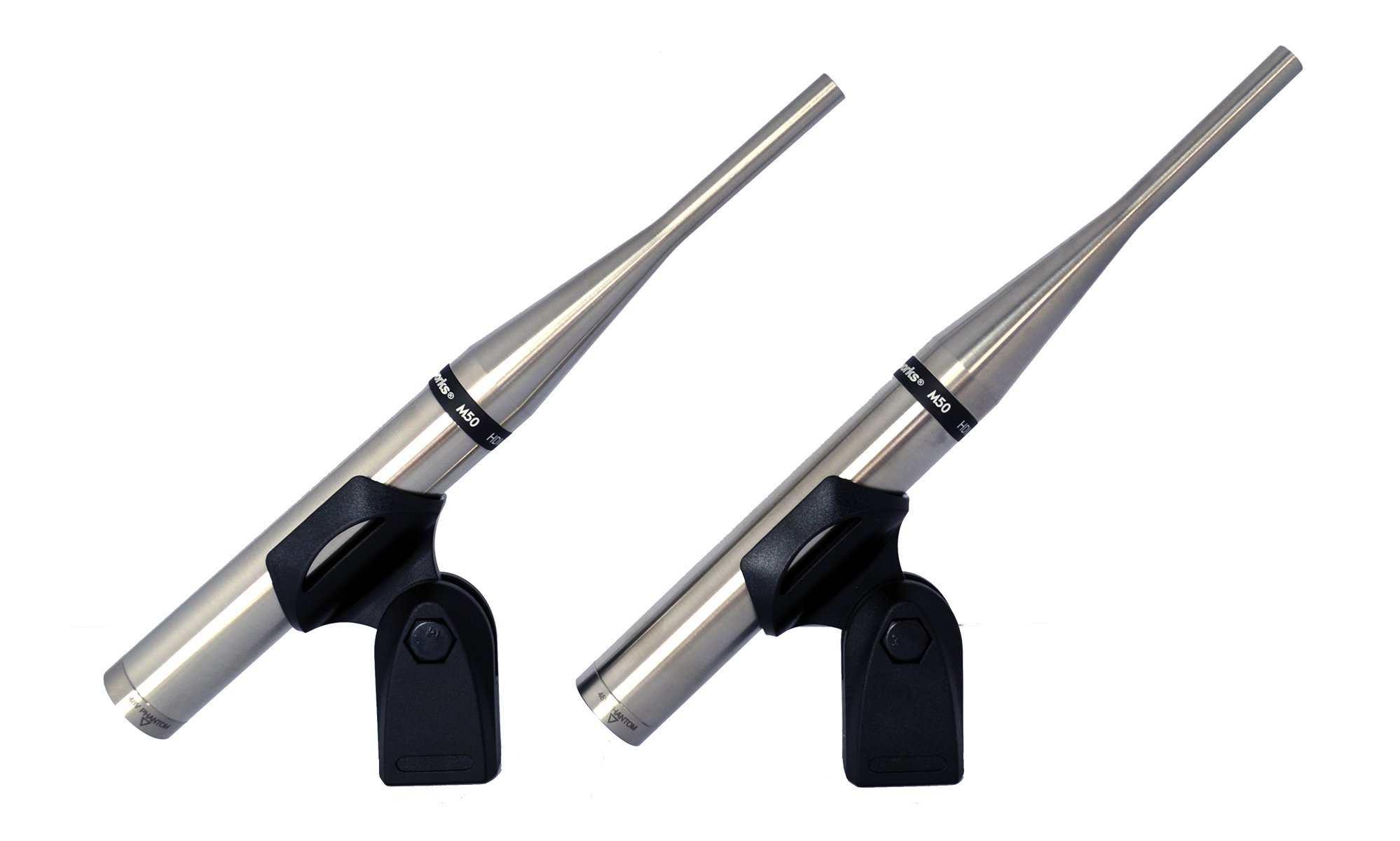

Earthworks M50MP
High Definition Measurement Mics, Matched Pair


The Earthworks M Series has become the accepted standard for affordable...
Learn More
Our Price: $2,799.00
List Price: $3,499.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Earthworks M50MP
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Earthworks M Series has become the accepted standard for affordable, reliable reference and measurement microphones that are accurate in the time domain and frequency response. They are remarkably stable with respect to temperature and atmospheric conditions and are optimized for clean, very fast impulse performance providing accurate wideband response with virtually no handling noise.

Earthworks M50MP Features:

  • Ideally suited for acoustical measurements that require extended frequency response, including high-end loudspeaker design and quality control, scientific research, measurements of ultrasonic or subsonic transducers, or any application where an extremely accurate free-field measurement microphone is required
  • Provides laboratory grade accuracy
  • Omnidirectional polar pattern
  • Flat frequency response, fast impulse response and exceptional polar characteristics
  • Used by SMAART™, MLSSA™, Spectrafoo™, TEF™ and RTA in addition to acoustic measurement systems manufactured by dbx, DEQX and others
  • Meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements
  • Requires 48V Phantom Power
  • Each M Series microphone is delivered with its own calibration chart providing its individually measured open-circuit sensitivity and the frequency response curve

Earthworks M50MP Specifications

  • Frequency Response:  3 Hz - 50 kHz +1/-3dB
  • Polar Pattern:  Omnidirectional
  • Sensitivity:  30mV/Pa (Typical)
  • Power Requirements:  48V Phantom, 10mA
  • Peak Acoustic Input:  142dB SPL
  • Output:  XLR
  • Output Impedance:  100 Ohms, balanced (50 Ohm ea. pin 2 & 3)
  • Minimum Load:  600 Ohms btw. pins 2 & 3
  • Noise:  22dB, A equivalent
  • Dimensions (LxD):  9" x 0.860" (229mm x 22mm)
  • Weight:  0.5 lbs (225g)
