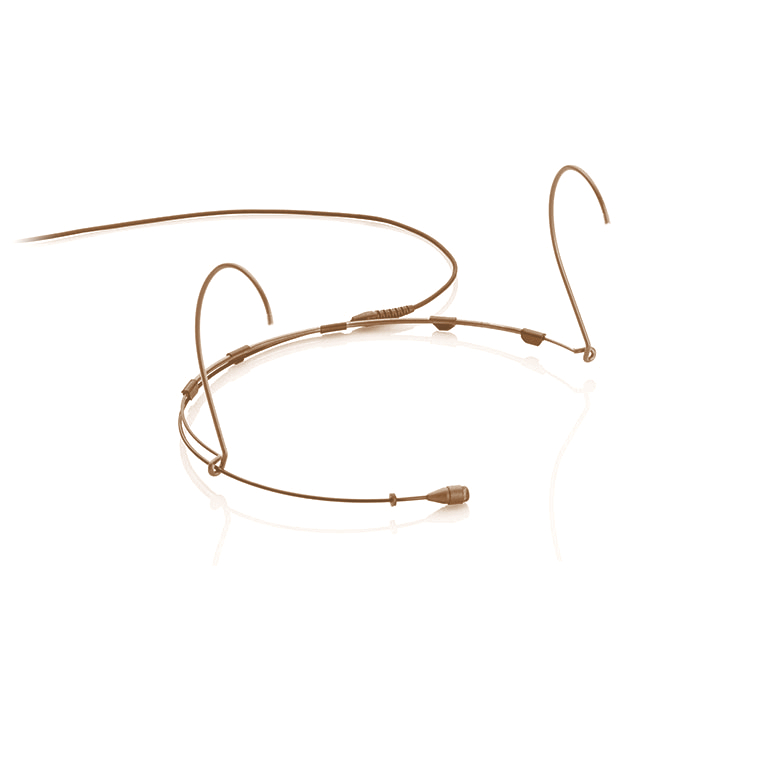

DPA Microphones 4066-F34
d:fine Omnidirectional Headset Microphone in Beige with Mini Jack Connector

OUR PART #:  4066-F34

A flexible miniature microphone solution that features very easy and fast adjustment...
Learn More
Our Price: $769.95
Write the first review.
DPA Microphones 4066-F34
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

A flexible miniature microphone solution that features very easy and fast adjustment, the DPA Microphones d:fine™ 4066-F34 comes with a mini-jack connector and a headset construction that is unique in design, offering both left and right mounting and color change. It is also possible to use the omnidirectional MMB4066 Miniature Microphone Boom separately in applications where the headset is not needed.

Attention has been paid to the humidity problems that often occur in theatrical applications. A double vent protection system, a drop stopper on the microphone boom, together with water-resistant materials inside the microphone, makes it more than difficult for the humidity to cause the microphone to fail. The headset surface is matte gold-plated and the earhooks are covered with a silicone hose.

The sensitivity is 6 mV/Pa to match the level of the human voice to the general input sensitivity of most wireless transmitters. If powered correctly the microphone will be able to handle sound pressure levels up to 144 dB SPL before clipping occurs.

DPA Microphones 4066-F34, d:fine Omnidirectional Headset Microphone Includes:

  • Microphone (boom, headband, cable)
  • A high-boost grid
  • A soft-boost grid
  • Five foam windscreens

DPA Microphones 4066-F34, d:fine Omnidirectional Headset Microphone Specifications:

  • Directional characteristics: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB:
    • Soft boost grid: 20 Hz – 20 kHz, 3 dB soft boost at 8 – 20 kHz.
    • High boost grid: 20 Hz – 20 kHz, 10 dB boost at 12 kHz.
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    Equivalent noise level, A-weighted:  Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB (A)
  • Total harmonic distortion (THD): < 1 % THD up to 123 dB SPL peak; < 1 % THD up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 97 dB
  • Max. SPL, peak before clipping: 144 dB
  • Output impedance: 30 – 40 ohm
  • Cable drive capability: Up to 300 m (984 ft)
  • Power supply:
    • For wireless systems: Min. 5 V – max. 50 V through DPA adapter.
    • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.
  • Microphone diameter: 5.4 mm (0.21")
  • Cable length: 1.2 m (3.9 t)
  • Cable diameter: 0.06" (1.6mm)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin (not applicable to this mic)
  • Operating temperature range: 14 to 113°F (-10 to 45°C)
