TOA MT-S0301 30W Matching Transformer for Type H Series Speakers

OUR PART #: MT-S0301 MFR #: MT-S0301

Copied to clipboard

The MT-S0301 Matching Transformer is designed to be installed in a TOA Line Array Speaker. ...Read more

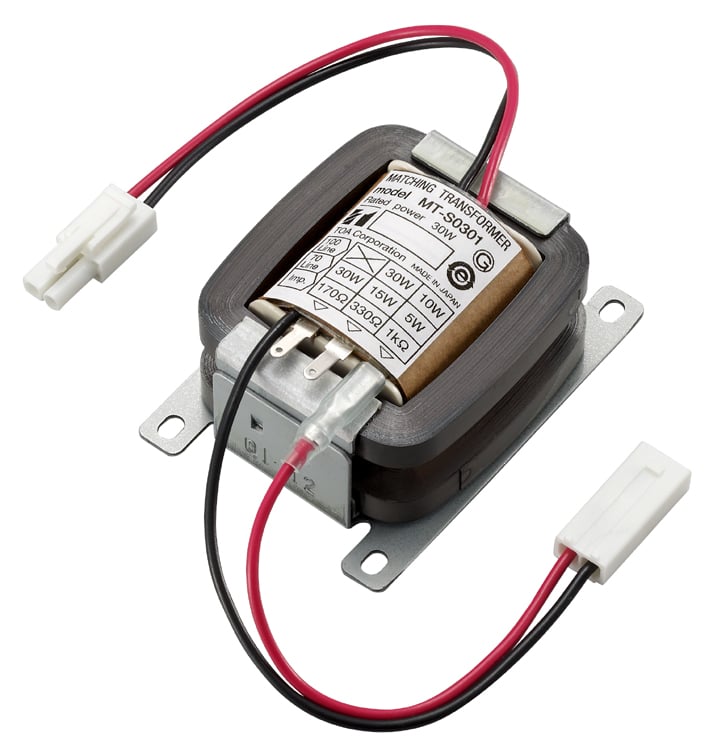

TOA MT-S0301 30W Matching Transformer For Type H Series Speakers Image 1
TOA MT-S0301 30W Matching Transformer For Type H Series Speakers
Our Price: $86.50
List Price: $107.10
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The MT-S0301 Matching Transformer is designed to be installed in a TOA Line Array Speaker.

Features:

  • Micro Class D amplifier for use in meeting/board rooms & signage applications.
  • UL 2043-rated for plenum installation
  • Energy Star certified including Auto Off/Standby
  • Small in size (approx. 6" x 6" x 1.75") allows convenient & flexible placement
  • L/R Line inputs via: removable Transformer-Balanced Terminal Block, 1/8" TRS mini-jack and RCA connections
  • Bass & Treble Controls
  • Input signal present (-20dB) and Peak LED indicators
  • Clip Limiter prevents distortion due to overload.
  • Remote Volume Control port for use with 10kΩ pot
  • Volume Control Attenuators

Specifications:

  • Rated Input Power: 30W
  • Primary Side:
    • 100V line: 330Ω (30W), 1kΩ (10W)
    • 70V line: 170Ω (30W), 330Ω (15W), 1kΩ (5W)
  • Secondary Side: 8Ω
  • Weight: 370g (0.82lbs)

Notes:

  • Applicable Speaker: SR-H3S, SR-H3L, SR-H2S, SR-H2L
