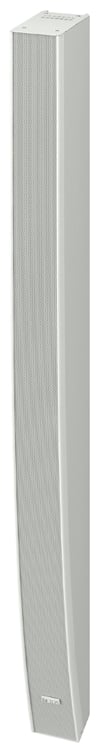

TOA SR-H3S
16 x 2.8" 360W 20° Curved Slim Line Array

OUR PART #  SR-H3S

Our Price: $670.87
List Price: $830.21
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The SR-H3S Line Array Speaker forms a linear sound source by the internal speaker units arrayed vertically in close proximity. It can be used for high-impedance applications with the installation of the optional MT-S0301 Matching Transformer.

Specifications:

  • Enclosure: Bass-reflex type
  • Power Handling Capacity: Continuous program: 360 W
  • Rated Impedance: 8 O
  • Sensitivity: 92 dB (1 W, 1 m equivalent, measured at8 m)
  • Frequency Response: 90 - 17,000 Hz (when using anoptional digital processor)
  • Directivity Angle: Horizontal: 90, Vertical: 20
  • Speaker Component: 7 cm (2.8") cone-type × 16
  • Input Connector: Removable input connector
  • Finish:
    Enclosure: MDF, white, urethane paint
    Front grille: Punched steelplate, white, acrylic paint
  • Dimensions: 84 (W) × 1177.2 (H) × 157 (D) mm (3.31" ×46.35" × 6.18")
  • Weight: 7.9 kg (17.42 lb)
  • Option:
    Matching transformer: MT-S0301
    Extension plate:SR-EP3
    Wall mounting bracket: SR-WB3
    Wall tilt bracket: SR-TB3
    Flyingbracket: SR-FB3
    Stand adapter: SR-SA3 (Applicable stand: ST-33B)
    Digitalprocessor: DP-0206
