TOA PJ304
Music/Paging Projection Speaker

OUR PART #  PJ304

Our Price: $110.82
List Price: $137.14
You save 19%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

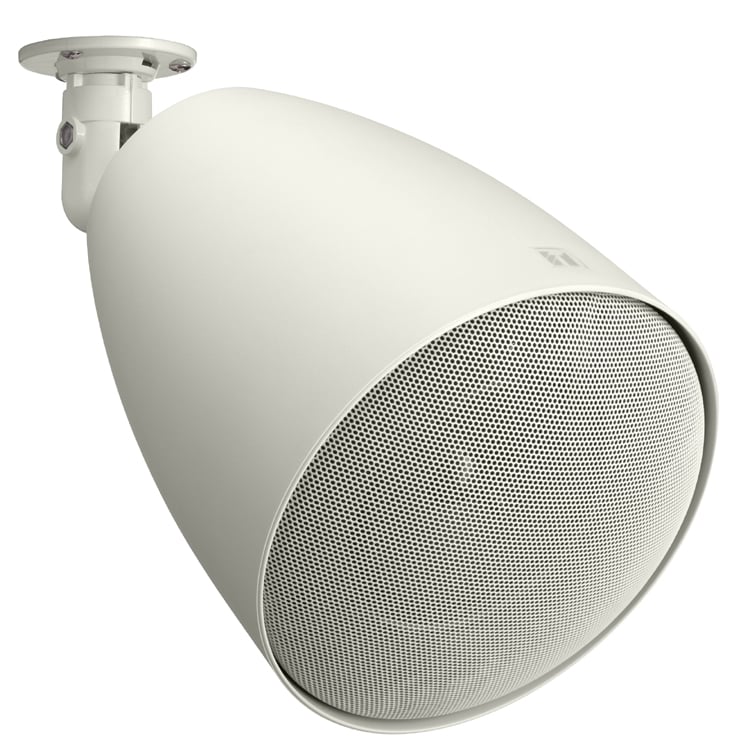

The PJ-304 is a projection speaker ideal for ceiling and wall installations. It easily blends in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment.

The PJ-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 O) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

Specifications:

  • Enclosure: Bass-reflex type
  • Rated Input: 30 W (100 V, 70 V line, 8 O)
  • Rated Impedance:
    100 V line: 330 O (30 W), 500 O (20 W), 670 O (15 W), 1 kO (10 W), 2 kO (5 W)
    70 V line: 170 O (30 W), 250 O (20 W), 330 O (15 W), 500 O (10 W), 1 kO (5 W)
    8 O
  • Sensitivity: 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
  • Frequency Response: 70 - 20,000 Hz (peak -20 dB)
  • Speaker Component: 12 cm (5") cone-type + balanced dome-tweeter
  • Speaker Cord: 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24")
  • Finish:
    Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
    Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
  • Dimensions: f186 × 369 (H) mm (f7.32" × 14.33")
  • Weight: 2.1 kg (4.63 lb) (unit only)
  • Accessories: Swivel bracket …1, Speaker mounting screw (4 × 16) …3

TOA PJ304
Music/Paging Projection Speaker

OUR PART #  PJ304

Product Information:

The PJ-304 is a projection speaker ideal for ceiling and wall installations. It easily blends in with lighting equipment. The supplied swivel bracket allows for flexible speaker angle adjustment.

The PJ-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 O) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

Specifications:

  • Enclosure: Bass-reflex type
  • Rated Input: 30 W (100 V, 70 V line, 8 O)
  • Rated Impedance:
    100 V line: 330 O (30 W), 500 O (20 W), 670 O (15 W), 1 kO (10 W), 2 kO (5 W)
    70 V line: 170 O (30 W), 250 O (20 W), 330 O (15 W), 500 O (10 W), 1 kO (5 W)
    8 O
  • Sensitivity: 91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
  • Frequency Response: 70 - 20,000 Hz (peak -20 dB)
  • Speaker Component: 12 cm (5") cone-type + balanced dome-tweeter
  • Speaker Cord: 2-core cabtyre cord 60 cm (1.97 ft) with diameter of 6 mm (0.24")
  • Finish:
    Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
    Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
  • Dimensions: f186 × 369 (H) mm (f7.32" × 14.33")
  • Weight: 2.1 kg (4.63 lb) (unit only)
  • Accessories: Swivel bracket …1, Speaker mounting screw (4 × 16) …3
