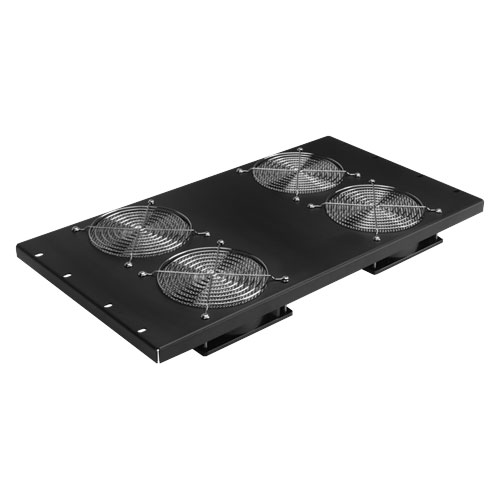

Atlas IED EFT6-4 Panel, 450 CFM Fan, 6RU

The Atlas Sound EFT6-4 top-mounted fan panel provides quiet and effective dissipation of heat, for equipment mounted in Atlas Sound

racks or cabinets with a 6 RU or greater open top (100, 200, 500, 700, & FMA Series). For installation in racks with greater than 6 RU top opening, SPF2 Series filler panels are suggested. Unit works best for .625" recessed rail applications; however, may be used in surface mount applications where the additional 1" height is not an issue. In addition, this product may also be used as a front or rear mounted fan panel within any rack or cabinet.

Four 115 CFM 4" (100mm) diameter fans provide 460 total CFM to ensure maximum air flow. Fan motors utilize ball bearing supports for

best performance and long life. Outside users are protected from the rotating blades by chrome plated wire grilles. Unit comes pre- assembled with a 6' polarized 115VAC power cord. Fans are factory-mounted for exhaust cooling and may be rotated easily for intake cooling. Mounting frame construction is 16-gauge CRS powder-coated in standard black.

Features:

• Top Mounting Fan Assembly Provides Quiet and Space Efficient Cooling for 19" Wide Cabinets
• Quality Components Assure Dependable and Effective Dissipation of Heat

Specifications:

• CFM: Four Fans @ 100CFM (400CFM Total)
• Voltage: 115VAC
• Width: 19" (483mm)
• Height: 6 RU (10.5" / 267mm)
• Power Consumption: 60 Watts
