OUR PART # 3SKB-R910U28

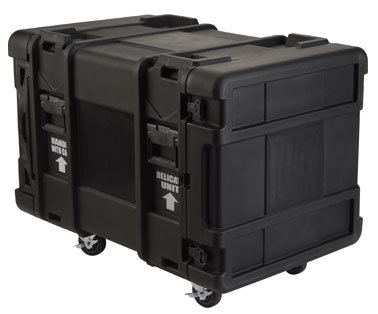

The 3SKB-R904U28 is a ten unit 28" deep roto-molded shock rack which should be an instant success with all companies utilizing the deeper servers such as Dell and Compaq. Nobody else manufactures a rotationally molded shock rack that is 28" deep and that fits inside the center portion of the case.
This case features (patent pending) compound hinged doors, black powder coated stainless steel latches, removable 4" casters, eight HM-245 elastomeric shock (load range of 40 to 150 lbs.) with provisions to add additional shocks for an extended payload range, gasketed doors and pressure relief valve.
28" Heavy Duty Shockrack systems include a revolutionary new patent pending Adjustable Rail Conversion System. This ARCS technology allows the user to adjust the rack width up to 0.5 inches on each side and optional easy-mount adapter rails will convert the equipment mounting standard from 3/16" threaded to 7/32" through holes or square cage nut windows. The 7/32" through hole option and the 3/16" threaded are special order items. Accommodates Dell and Compaq servers utilizing "Versa-rail" or "Rapid-rail" pull-out systems.
Lid Depth: 4.5000 in (11.4300 cm)
Interior Width: 19.0000 in (48.2600 cm)
Interior Height: 17.500 in (44.4500 cm)
Interior Cu. Volume: 5.5320 cu ft (0.1567 cu m)
Rack Space Units Total: 10
Rack Depth Rail to Rail: 28.7500 in (73.0250 cm)
Rack Depth Front Rail to Back Lid: 33.2500 in (84.4550 cm)
