Radio Design Labs TX-PCR1
Paging Control Relay

OUR PART #  TX-PCR1

Our Price: $137.66
List Price: $184.15
You save 25%! (Low Price Guarantee)
In Stock

Recommended Accessories

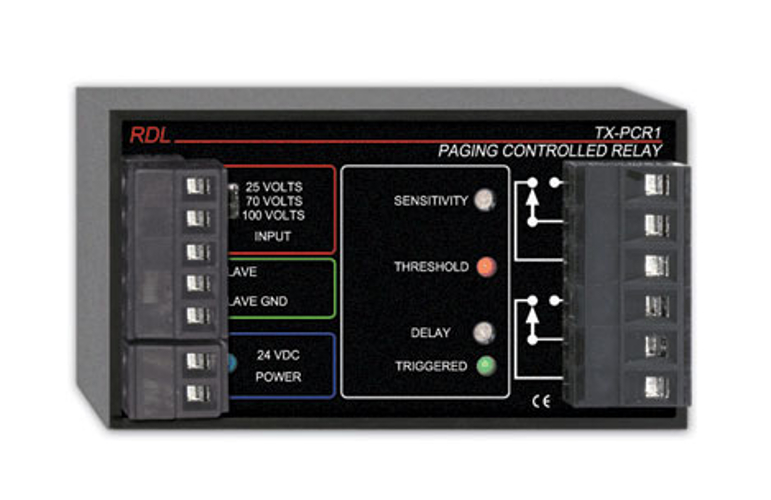

Radio Design Labs' TX-PCR1 is ideal where switching needs to be controlled from a constant voltage amplified audio source. The module will trigger on any program material, with paging sources being the most common. The TX-PCR1 includes both an open-collector SLAVE output to control other modules or equipment and a DPDT high power switching relay suited to switching speaker loads.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

The amplified audio source is connected using a detachable terminal block. A front panel switch is provided to select the source type: 25 V, 70 V or 100 V. The 25 V setting may be used for an 8 ohm, 75 Watt maximum, amplified source. Input sensitivity is adjusted on a single-turn trimmer. In the clockwise position, the sensitivity trigger threshold is 30 dB below the switch-selected constant voltage. A red LED illuminates whenever the audio level exceeds the trigger threshold, facilitating the sensitivity adjustment.

The module is triggered when the audio exceeds the threshold and it remains triggered for a defined time duration after the audio falls below the threshold. This DELAY is adjustable from 3 to 25 seconds using a front panel trimmer. Adjustment is simplified by a green LED that remains illuminated while the module is triggered. The SLAVE terminal may be used as either an input or output control terminal. When the module is triggered, the SLAVE terminal is internally pulled to ground through an open collector. If the TX-PCR1 SLAVE terminal is externally pulled to ground through a switch or the open-collector terminal of another RDL module, the relay will energize until the terminal is released. A blue POWER LED illuminates when the TX-PCR1 is powered from an external 24 Vdc power supply.

Use the TX-PCR1 relay contacts to switch speaker lines or to control the logic inputs of other equipment with control inputs that may not be pulled up to 24 V. The TX-PCR1 is ideal to provide local speaker muting during an area page. The double pole contacts allow local speakers to be automatically connected to a paging line during a page and reconnected to the local amplifier when the page is completed. If additional speaker lines need to be switched, the SLAVE terminal may be used to control additional TX-PCR1 modules or RDL ST-LCR1H High Power Logic Controlled Relays.

Radio Design Labs TX-PCR1 Features:

  • Switch-Selectable Input: 25 V, 70 V, 100 V
  • 25 Volt Input Also Accepts 8 O Inputs up to 75 Watts
  • Switching Functions Controlled by Speaker Level Source
  • Input Accepts Amplified Constant Voltage Signals
  • Transformer-Isolated Input
  • Front Panel Trimmer Provides Sensitivity Adjustment
  • Front Panel Trimmer Provides Release Delay Adjustment
  • Signal Threshold LED Facilitates Sensitivity Adjustment
  • LED Indicates when Module is Triggered
  • Release Delay Adjustable from 3 to 25 Seconds
  • Open-Collector Output Active when Module is Triggered
  • Switches on Paging or Any Other Amplified Audio Signal
  • 8 Amp DPDT Relay Contacts for Switching Speaker Loads
  • Ideal for Muting or Switching Primary Speakers During Paging
24 VDC 500mA Switching Power Supply, North American Model
Radio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply, North American Model
Radio Design Labs' PS-24AS is a 24 VDC/500 mA switching power supply with a North American AC plug. Compatible with various RDL products.Radio Design Labs PS-24AS Specifications: Input: 100 to 240 VAC Output: 24 Vdc, 500 mA (UL, ...
23.40 31.28 25
In Stock
Mounting Kit for STICK-ON, TX, or Rack-Up module
Radio Design Labs MB1-RDL Mounting Kit for STICK-ON, TX, or Rack-Up module
Two mounting brackets mounts a STICK-ON, TX, or Rack-Up module to a flat surface.
3.46 4.08 15
In Stock
Mounting Frame for Stick/TX
Radio Design Labs SR-4 Mounting Frame for Stick/TX
Radio Design Labs' SR-4 is a universal module chassis that can mount to a backboard, wall or nearly any other support. It provides mounting for 4 STICK-ON power amplifiers or 7 standard STICK-ON modules. TX ™ modules may also be mounted. ...
84.88 113.53 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Pole Mount Tray for RDL Module
Radio Design Labs PM-1T Pole Mount Tray for RDL Module
The PM-1T is a tray that mounts above a projector using a standard (1.5" I.D.) round projector pole or any smaller round or rectangular pole. The tray accommodates up to two FP-PA20 Audio Power Amplifiers (for stereo operation) and two ...
81.97 109.63 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
1RU Rack Adapter for TX Series Products
Radio Design Labs TX-RA5 1RU Rack Adapter for TX Series Products
Radio Design Labs' TX-RA5 chassis is a single rack unit accessory which provides mounting for up to 5 TX Series products.
33.06 44.22 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
10.4" Rack Mount for 3 TX Series Products
Radio Design Labs TX-HRA3 Rack Mount 10.4" Rack Mount for 3 TX Series Products
The TX-HRA3 rack mounts 3 TX modules. This adapter fits 10.4" racks.Radio Design Labs TX-HRA3 Rack Mount Specifications: Package Dimensions (LxWxD): 13" X 2.5" X 2.5" Shipping Weight: 0.55 lbs.
31.45 42.04 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Rear Rack Rail Mounting Kit for Any TX Series Module
Radio Design Labs TX-RRB1 Rear Rack Rail Mounting Kit for Any TX Series Module
Radio Design Labs' TX-RRB1 mounting kit contains a bracket to attach a TX module to a rear rack rail or to any flat surface.Shipping Weight: 0.15 lbsPackage Dimensions: 4" x 2" x 2"
11.87 14.00 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Din Rail Adaptor for TX Module
Radio Design Labs DRA-35T Din Rail Adaptor for TX Module
The DRA-35T provides mounting for any RDL® TX or MAX TX module to a DIN rail. The unique design allows mounting TX modules in a rack, cabinet or anywhere else DIN rail mounting of TX modules is desired.
9.53 11.24 15
Usually ships in 7-14 business days.
Need it sooner? Call us!
Kit to Mount ST, TX Series Modules on FP Panel
Radio Design Labs MB3-RDL Kit to Mount ST, TX Series Modules on FP Panel
TX or STICK-ON Module fastens to MB-3 which slides into FP-RRA/H track.
5.11 6.83 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
Mounting Kit for RU and TX Series
Radio Design Labs MB2-RDL Mounting Kit for RU and TX Series
MB-2 pair mounts a RACK-UP or TX module above or below a surface.
2.35 2.77 15
Usually ships in 7-14 business days.
Need it sooner? Call us!

Click to download

Radio Design Labs TX-PCR1
Paging Control Relay

OUR PART #  TX-PCR1

Product Information:

Radio Design Labs' TX-PCR1 is ideal where switching needs to be controlled from a constant voltage amplified audio source. The module will trigger on any program material, with paging sources being the most common. The TX-PCR1 includes both an open-collector SLAVE output to control other modules or equipment and a DPDT high power switching relay suited to switching speaker loads.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

The amplified audio source is connected using a detachable terminal block. A front panel switch is provided to select the source type: 25 V, 70 V or 100 V. The 25 V setting may be used for an 8 ohm, 75 Watt maximum, amplified source. Input sensitivity is adjusted on a single-turn trimmer. In the clockwise position, the sensitivity trigger threshold is 30 dB below the switch-selected constant voltage. A red LED illuminates whenever the audio level exceeds the trigger threshold, facilitating the sensitivity adjustment.

The module is triggered when the audio exceeds the threshold and it remains triggered for a defined time duration after the audio falls below the threshold. This DELAY is adjustable from 3 to 25 seconds using a front panel trimmer. Adjustment is simplified by a green LED that remains illuminated while the module is triggered. The SLAVE terminal may be used as either an input or output control terminal. When the module is triggered, the SLAVE terminal is internally pulled to ground through an open collector. If the TX-PCR1 SLAVE terminal is externally pulled to ground through a switch or the open-collector terminal of another RDL module, the relay will energize until the terminal is released. A blue POWER LED illuminates when the TX-PCR1 is powered from an external 24 Vdc power supply.

Use the TX-PCR1 relay contacts to switch speaker lines or to control the logic inputs of other equipment with control inputs that may not be pulled up to 24 V. The TX-PCR1 is ideal to provide local speaker muting during an area page. The double pole contacts allow local speakers to be automatically connected to a paging line during a page and reconnected to the local amplifier when the page is completed. If additional speaker lines need to be switched, the SLAVE terminal may be used to control additional TX-PCR1 modules or RDL ST-LCR1H High Power Logic Controlled Relays.

Radio Design Labs TX-PCR1 Features:

  • Switch-Selectable Input: 25 V, 70 V, 100 V
  • 25 Volt Input Also Accepts 8 O Inputs up to 75 Watts
  • Switching Functions Controlled by Speaker Level Source
  • Input Accepts Amplified Constant Voltage Signals
  • Transformer-Isolated Input
  • Front Panel Trimmer Provides Sensitivity Adjustment
  • Front Panel Trimmer Provides Release Delay Adjustment
  • Signal Threshold LED Facilitates Sensitivity Adjustment
  • LED Indicates when Module is Triggered
  • Release Delay Adjustable from 3 to 25 Seconds
  • Open-Collector Output Active when Module is Triggered
  • Switches on Paging or Any Other Amplified Audio Signal
  • 8 Amp DPDT Relay Contacts for Switching Speaker Loads
  • Ideal for Muting or Switching Primary Speakers During Paging
