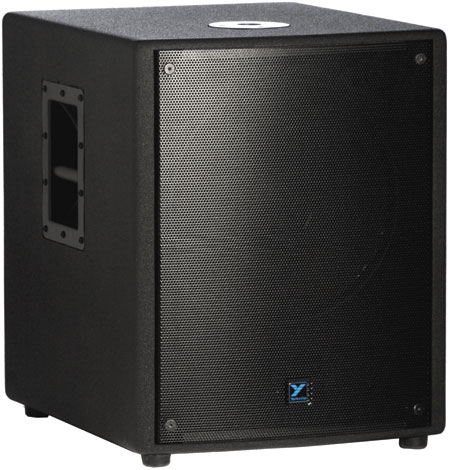

Yorkville NX720S
15" Mini Subwoofer, Powered, 720 Watts


Delivering outstanding low-frequency performance...
Learn More
Our Price: $1,049.00
List Price: $1,449.00
You save 28%!
Write the first review.
Yorkville NX720S
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

Delivering outstanding low-frequency performance, the 720-watt NX720S powered subwoofer has been designed from the ground up to be the ideal companion for any medium sized live sound or DJ PA. Although it is the perfect match for the NX750P it will match well with other systems. Intended for a variety of applications, the NX720P uses a single long-excursion, neodymium-magnet 15-inch woofer to deliver maximum output over the entire 40 to 150 Hz range.

The NX720S has sophisticated processing circuitry that protects the driver while maximizing the use of the available power. This processing has been carefully optimized to complement the characteristics of the driver and enclosure system. The fast limiter protects against clipping and over excursion. It is located with both high and low pass filters on either side of the limiter to guarantee that only the correct frequency content reaches the driver. The slow (RMS) limiter is equalized to adjust for the impedance variations of the loudspeaker system over frequency. This ensures the maximum output of continuous bass prevalent in today''s music while ensuring protection of the driver against overheating. Carefully tailored attack and release times ensure that maximum level is available from the system.

The input section in the NX720S allows for a variety of system configurations. There are two input sections allowing two signals to be blended into the NX720S. This allows stereo left and right signals to be summed into one NX720S while preserving channel separation of the stereo signals. Each input section has XLR male and female jacks to allow loop thru of line level signals. In addition one input section also has two 1/4-inch jacks that may be used for loop thru of line or speaker level signals. Within each section all jacks are connected in parallel.

Simple controls on the NX720S include an input gain control (Volume), variable high frequency cut-off and low-frequency tunable bass boost. The variable high frequency cutoff is adjustable from 90 to 150 Hz to trim the subwoofers low-pass filter to suit whatever full range cabinets are being used with this sub. A low-frequency tunable bass boost adjustable from 45 to 90 Hz has been included to allow subtle customizing of the bass character.

Proven Class D amplifier technology allows the NX720S to operate without a fan while preserving ample thermal margin without the need for large heavy heatsinks so it is lighter than conventional amplifiers. A lightweight neodymium-magnet driver further reduces overall weight, as does solid, rugged 5/8th-inch 11-ply Russian birch cabinet construction. A heavy gauge perforated metal grille protects the speaker while integrated bar handles and a speaker-stand pole-mount are also metal.


  • 720-watt Self-Powered Subwoofer
  • 15-inch Neodymium Woofer
  • Solid Plywood Cabinet Construction
  • Delivers Solid 40-150Hz Bass
  • Tunable 45-90Hz Bass Boost
  • Integrated All-Metal Handles & Standmount Adapter
  • 128db Maximum SPL


  • System Type Powered Subwoofer
  • Active or Passive Active
  • Program Power (Watts) 720 Watts (1500 Watts Peak)
  • Max SPL (dB) 134dB Peak (128dB Continuous)
  • Frequency Response (Hz +/- 3db) 40 - 150 adjustable
  • Driver Configuration 15-inch / 3-inch voice coil
  • LF Protection Electronic Limiting (Excursion, Thermal, Clip)
  • Cooling Scheme Passive convection
  • Power Cable Detachable IEC
  • Power Switch Yes
  • Power Consumption (typ/max) 230VAC 50 Hz 1.2A
  • Inputs - 1/4" Jacks 1 In, 1 Link Out
  • Inputs - XLR Left and Right Male/Female Link
  • Level Controls Main Volume
  • EQ Controls HF Cut-off 90 - 150Hz
  • Limiter RMS / Peak / Current
  • LED Indicators Power / Limit / Clip
  • Other Controls / Features Selectable line or Speaker level input
  • 45Hz - 90Hz variable boost frequency
  • Feet Rubber
  • Bar Handles 2 Side Mounted
  • Pole Mount Adapter (1 3/8"-3.5cm) Top
  • Enclosure Materials 15mm (5/8-inch) 11-ply Russian Birch
  • Port(s) 1
  • Grille Heavy Gauge perforated metal
  • Covering / Finish Black Ultrathane (painted)
  • Dimensions (DWH xbackW, inches) 21.5 x 18.1 x 22.75
  • Dimensions (DWH xbackW, cm) 54.6 x 46 x 57.8
  • Weight (lbs/kg) 77.6 / 35.2

* Specifications subject to change without notice
