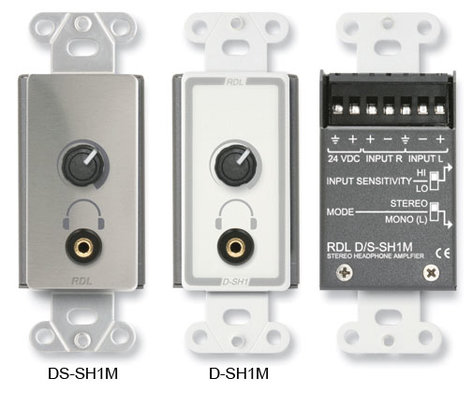

Radio Design Labs D-SH1M
Stereo Headphone Amplifier with 1/8" TRS Jack in White

OUR PART #  D-SH1M

Our Price: $142.10
List Price: $190.09
You save 25%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

The D-SH1M is used in applications requiring headphones of any impedance to be driven from consumer or professional audio sources. It is ideally suited to applications as diverse as language translation, museums, interview studios and music stores.

The D-SH1 is a dual-channel headphone amplifier with balanced/unbalanced left and right inputs. Each input accepts operating levels between -20 dBV and +20 dBu. Two recessed slide switches located on the side of the rear enclosure are set prior to mounting the module. One switch is provided for setting the input sensitivity. The mode switch selects between stereo and mono operation. In the mono position, the left input is used to drive both output channels.

NOTE: Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product.  Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.

When the module is used in a monaural system, only the left channel input must be wired. The front panel level control is a long life potentiometer controlling matched VCAs. Audio does not pass through this control, assuring years of noise free level adjustment. The output amplifiers deliver more than 50 mW into either high or low impedance headphones. Module operation is from a 24 Vdc ground referenced power supply.

Features:

  • Integral Long-Life VCA Stereo Level Control
  • Balanced or Unbalanced Inputs
  • Switch-Selectable Input Sensitivity
  • Switch-Selectable Mono (Left) or Stereo Operation
  • Amplifier to Drive High or Low Impedance Headsets
  • Output: Mini-Jack

Specifications:

  • Inputs (2): 10 kO balanced or unbalanced bridging
  • Input Level: +4 dBu nominal (Low input sensitivity); -15 dBV nominal (High input sensitivity)
  • Maximum Input Level: +21 dBu (Low input sensitivity); +3 dBu (High input sensitivity)
  • Output Signal: 10 mW into 100 O (normal rated); 50 mW into 100 O (maximum)
  • THD+N: < 0.5% @ 1 kHz
  • Frequency Response: 30 Hz to 20 kHz (±2 dB)
  • Noise: < -70 dB below normal operating level
  • Gain: User-adjustable on front panel; 18.5 dB (maximum, High input sensitivity); Unity (maximum, Low input sensitivity)
  • CMRR: > 60 dB (50 to 120 Hz)
  • Crosstalk: Below noise floor (20 Hz to 20 kHz)
  • Power Requirement: GROUND-REFERENCED, 24 to 33 Vdc @ 50 mA
24 VDC 500mA Switching Power SupplyRadio Design Labs PS-24AS 24 VDC 500mA Switching Power Supply

Radio Design Labs' PS-24AS is a 24 Vdc switching power supply with a North American AC plug.  500 mA, dc plug.Specifications: Input: 100 to 240 VACOutput: 24 Vdc, 500 mA (UL, CSA)Dimensions: 1.65" x 2.75" x 1.45" (4.2 x 7 x 3.7 ...

In Stock

Our Price:$22.92List Price: $30.67You save 25%!
