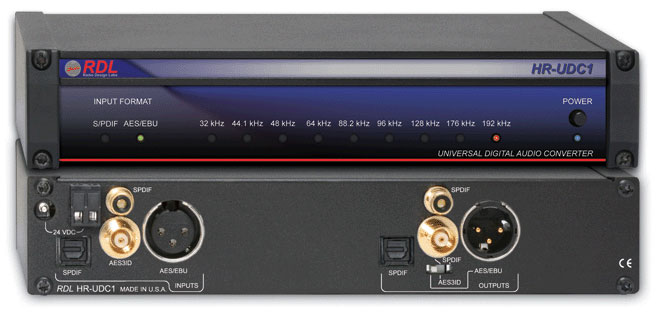

RDL HR-UDC1 Digital To Digital Audio Converter Image 1
RDL HR-UDC1 Digital To Digital Audio Converter
Our Price: $702.34
List Price: $936.45
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$20/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Radio Design Labs' HR-UDC1 is the perfect choice in installations where digital audio signals must be converted between consumer and professional formats. The input and output support AES/EBU, S/PDIF and AES-3ID formats. The HR-UDC1 automatically detects a valid input on any of the four input jacks: S/PDIF optical, S/PDIF coaxial, AES-3ID or AES/EBU. The input is decoded, re-clocked and retransmitted to the output. All pro/consumer, emphasis, and sampling frequency bits common to both S/PDIF and AES/EBU standards are inserted in the output data stream. Front-panel LEDs display the digital audio format and sample rate of a valid source received without any phase-lock or bit errors.

The output is switch-selectable to provide an AES/EBU, S/PDIF coaxial or optical, or AES-3ID output. The switch enables the appropriate output jack and any required electrical and data format conversion. The AES/EBU input and output are 110 Ohm terminated; the S/PDIF coaxial and AES-3ID jacks are 75 Ohm terminated.

The HR-UDC1 is powered from 24 Vdc, which may be connected through the detachable terminal block or through the dc power jack. A front-panel power switch is provided.

RDL's proprietary Sure-Lok auto recovery supervision monitors possible causes of latch-up and reinitiates digital signal lock, bringing a high level of stability to digital audio signal distribution under the variety of conditions encountered in professional environments.

Features:

  • Data Conversion Between S/PDIF and AES/EBU
  • Electrical Conversion Between Digital Audio Formats
  • Input: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
  • Output: AES/EBU, Coaxial or Optical S/PDIF, AES-3ID
  • Operation Up to 24 bits, 192 kHz
  • Exclusive Sure-Lok™ Auto-Recovery Sentinel
  • Transformer Isolated AES/EBU Input and Output
  • Digital Signal Reclocking
  • Sample Rate Indicator
  • Digital Signal Lock Indicator for Each Input Format
  • Please see data sheet for specifications.

NOTE:

Radio Design Labs' PS-24AS power supply is NOT included but is required in order to power this product. Please see the "Accessories" tab or click here for more information on the PS-24AS power supply.
