Yamaha 16X8-DIG-STAGEBX-KIT
1-SB168-ES, 1-AVY16-ES100

OUR PART #  16X8-DIG-STAGEBX-KIT

Call for price! Not available online.

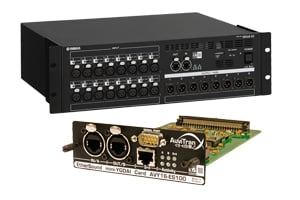

The 16x8 Digital Stagebox Kit is a 16-input, 8-output, Ethersound compliant stage box kit that adds digital snake functionality to popular all-in-one digital consoles like the LS9, M7CL, and PM5D.

Includes:

  • SB168-ES 16x8 EtherSound digital network stagebox
  • AVY16-ES100 Auvitran 16-channel EtherSound network I/O card

SB168-ES Features:

  • 16 mic/line inputs
  • 8 analog outputs
  • 24-bit/48kHz EtherSoundTM digital network stagebox
  • Remote controllable HA
  • +48V Phantom Power
  • 2 EtherCon® connectors
  • 3U Rackspaces

AVY16-ES100 Features:

  • 128 channels, 24 bit, 48 kHz or 44 kHz audio transmission over Ethernet.
  • 16 YGDAI output channels can be dynamically "extracted" from any of the 64 EtherSoundTM
  • downstream channels or from any of the 64 upstream channels when the bidirectional mode is active.
  • 16 YGDAI input channels can be dynamically "inserted" to any of the 64 EtherSoundTM downstream channels or to any of the 64 upstream channels when the bidirectional mode is active.
  • AuviTran's ESMonitor, a Windows Vista/XP application running on a remote PC connected to the EtherSoundTM network, allows automatic discovery of AVY16-ES100 cards; monitors connection & disconnection status for all cards; controls the individual cards' parameters; and alllows local assignment of any YGDAI input or output to the required EtherSoundTM channel.
  • 2 x ES100 ports allow the daisy-chaining of multiple AVY16-ES100 cards or other thirdparty EtherSoundTM devices.
  • RS232 serial port allows 3rd-party data connection through the EtherSoundTM network using virtual data tunelling or data exchange from/to a remote PC.
  • Internal MIDI port located in the mini-YGDAI card enables remote control of the Yamaha device via a third-party PC application.



Yamaha 16X8-DIG-STAGEBX-KIT
1-SB168-ES, 1-AVY16-ES100

OUR PART #  16X8-DIG-STAGEBX-KIT

Product Information:

The 16x8 Digital Stagebox Kit is a 16-input, 8-output, Ethersound compliant stage box kit that adds digital snake functionality to popular all-in-one digital consoles like the LS9, M7CL, and PM5D.

Includes:

  • SB168-ES 16x8 EtherSound digital network stagebox
  • AVY16-ES100 Auvitran 16-channel EtherSound network I/O card

SB168-ES Features:

  • 16 mic/line inputs
  • 8 analog outputs
  • 24-bit/48kHz EtherSoundTM digital network stagebox
  • Remote controllable HA
  • +48V Phantom Power
  • 2 EtherCon® connectors
  • 3U Rackspaces

AVY16-ES100 Features:

  • 128 channels, 24 bit, 48 kHz or 44 kHz audio transmission over Ethernet.
  • 16 YGDAI output channels can be dynamically "extracted" from any of the 64 EtherSoundTM
  • downstream channels or from any of the 64 upstream channels when the bidirectional mode is active.
  • 16 YGDAI input channels can be dynamically "inserted" to any of the 64 EtherSoundTM downstream channels or to any of the 64 upstream channels when the bidirectional mode is active.
  • AuviTran's ESMonitor, a Windows Vista/XP application running on a remote PC connected to the EtherSoundTM network, allows automatic discovery of AVY16-ES100 cards; monitors connection & disconnection status for all cards; controls the individual cards' parameters; and alllows local assignment of any YGDAI input or output to the required EtherSoundTM channel.
  • 2 x ES100 ports allow the daisy-chaining of multiple AVY16-ES100 cards or other thirdparty EtherSoundTM devices.
  • RS232 serial port allows 3rd-party data connection through the EtherSoundTM network using virtual data tunelling or data exchange from/to a remote PC.
  • Internal MIDI port located in the mini-YGDAI card enables remote control of the Yamaha device via a third-party PC application.
