OUR PART # CVS4-MICRO

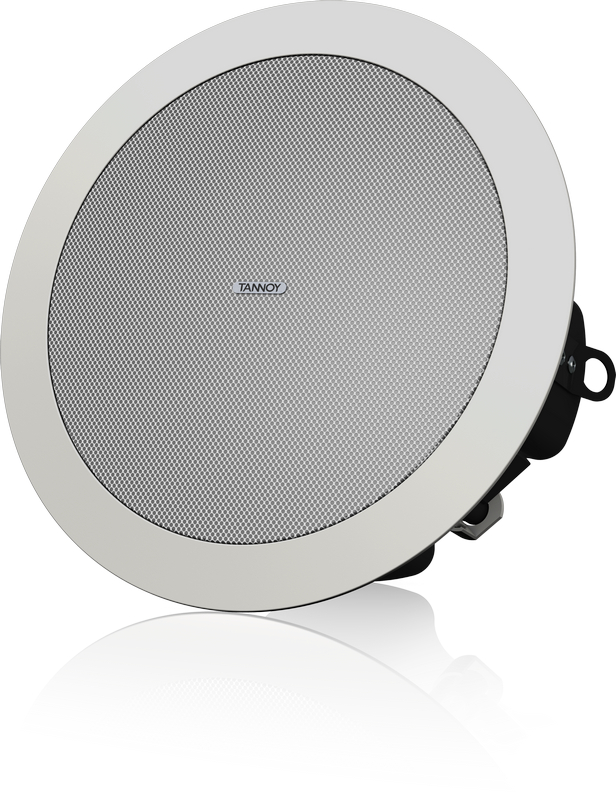

The CVS4 Micro is a full bandwidth ceiling speaker system comprising a 100mm (4.00") mid bass driver with a coaxially mounted 19mm (0.75") high frequency section mounted in a vented, injection moulded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The CVS4 Micro is designed to suit those demanding situations where ceiling space is limited but there’s still a requirement for high quality, natural sound – thanks to its shallow back-can.
The CVS4 Micro is equipped with a low insertion loss 15W line transformer easily configurable to the following settings via front baffle mounted rotary tapping switch:
The CVS4 Micro is supplied with an integral zinc-plated steel back can with recessed termination box to satisfy the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.
