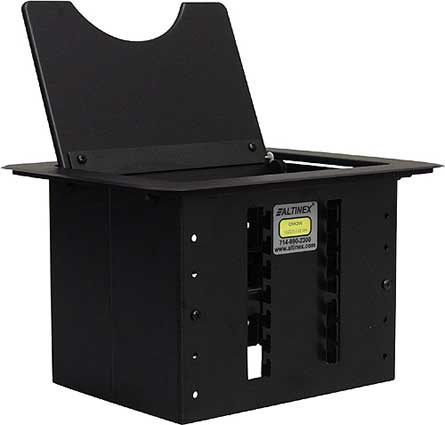

Altinex CNK200
Cable Nook Interconnect Box

OUR PART #:  CNK200

Designed for boardrooms and conference rooms, the Modular Cable-Nook has more room than the original Cable-Nook by eliminating the 2 internal AC power sockets...
Learn More
Our Price: $212.36
List Price: $237.00
You save 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Altinex CNK200
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Designed for boardrooms and conference rooms, the Modular Cable-Nook has more room than the original Cable-Nook by eliminating the 2 internal AC power sockets, yet provides a simple, effective way of hiding/storing multimedia cables and connectors. The cables remain connected to a presentation system enabling the user to access connections to video, audio, and other media sources.

The Modular Cable-Nook uses a trapdoor type half-moon lid that remains flush with the table when not in use. To access the cables or connectors, simply lift the trap door and pull the ends out, or plug cables into any installed fixed connectors. The lid closes easily even with several cables in use. After the presentation, the cable ends are returned to the Cable-Nook for safe storage.

Cables feed through the Cable-Nook to the underside of the table, enabling connection to the presentation system. The weight of the cables helps to feed the slack through the unit and the cable ends are kept from falling by a special adjustable retaining bracket. The bracket uses rounded edges to prevent kinking and is adjustable to both height and depth.

A variety of accessories is available for the Modular Cable-Nook, including power outlets, fixed connectors, and snap-in port panels. The retaining brackets (part number CN5010RB) are not included, and must be ordered separately.

Important: the CNK200 comes as an empty box; accessories must be ordered separately to provide a complete solution.

Features

  • Installs into tabletop
  • Convenient access to cable ends or fixed connectors
  • Optional retaining bracket adjusts for range of cable types
  • Modular configuration: more room for additional connectors
  • Simple, cost-effective interconnect solution

Specifications

  • Compatibility: Cable-Nook Standard and Customizable Plates
    CN5000 Series
    CNK-IP-100 Series
    All Altinex Snap-In Connectors
  • Hole Sets: 23
  • Minimum Table Thickness: 0.5"
  • Maximum Table Thickness: 3.5"
  • Housing Dimensions (H x W x D): 4.7" x 6" x 4.7"
  • Bezel Dimensions (Surface, W x D): 7.8" x 6.5"
  • Color: Black
  • Material: Aluminum
  • Operating Temperature: 10°C-35°C
  • Maximum Temperature: 50°C
  • Humidity: 90% non-condensing
  • MTBF (calculations): 40,000 hrs (min.)
  • Accessories Included: Mounting Hardware (2 x thumb screws, 2 x mounting brackets)
