Electro-Voice RE2-510

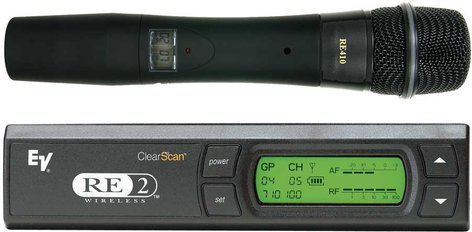

Handheld Wireless Mic System w/RE510 Supercardioid Condenser Element (Shown with RE410)

OUR PART #:  RE2-510

Selected Model Price: $569.00
List Price: $715.00
Save up to 20%!
Write the first review.
Electro-Voice RE2-510
Select a Model: (shipping times are approximate)

Related Products

Handheld System Includes:

  • HTU2C-510 Transmitter featuring the RE510 super cardioid Condenser element
  • RE-2 Diversity Receiver

Whether you're performing at the local rock club, lecturing at a corporate seminar, or speaking in a house of worship, the Electro-Voice RE-2 brings ease-of-use, clear sound, and clean channels to wireless.

RE-2 Receiver
The RE-2 is a completely programmable, frequency-agile system with one-touch Auto-ClearScan. It operates over 28MHz (six TV channels), XLR mic, line level output and many other features.

RE-2 Features

  • Designed for House of Worship, Performance & Sports Venues, and other applications
  • One touch Auto-ClearScan
  • Programmable in 25kHz steps across 28MHz operating bandwidth
  • Backlit LCD displays the Group, Channel, Frequency transmitter battery level, diversity operation, and RF and Audio signal level meters
  • Balanced XLR audio output for Microphone or Line level signals and a 1/4" line level jack
  • Fourth generation Posi-phase diversity and advanced audio circuits
  • Unique "Guitar" setting
  • Detachable 1/4-wave antennas

RE-2 Specifications

  • Antennas: External 1/4 wave detachable
  • Case Material: Metal
  • Connector Type: 1/4", unbalanced
  • Connector Type: 3-pin XLR
  • Diversity: Digital Posi-Phase; True Diversity
  • Finish: Non-reflecting black
  • Indicators LCD: Group, Channel, Frequency, AF Meter, RF Meter, Battery Level
  • Number of Channels: 1112 possible (programmable in 25kHz steps) per band
  • Power Requirement: 12 VAC/DC 300 mA
  • RF Specifications:
    A Band 648-676 MHz (TV Ch 43-48)
    B Band 696-724 MHz (TV Ch 51-56)
  • Squelch: Tone Code plus Amplitude
  • Wired/Wireless: Wireless
  • Dimensions (H x W x D): 1.72" x 7.5" x 5.91"

HTU2 Handheld Transmitter
The HTU2 handheld transmitter is a rugged, high-impact, ABS plastic handheld available with EV N/D267a, N/D767a, RE410, or RE510 microphone elements. One-button on/off/mute, coupled with the smart battery feature, makes the HTU2 easy to use, and easy to maintain.

HTU2-510 Features

  • Designed for House of Worship, Performance & Sports Venues, Pro Music, and other applications
  • RE510 supercardioid condenser element
  • On/Off acts as mute and can be disabled
  • Internal 1/2-wave antenna

HTU2-510 Specifications

  • Antennas: Internal 1/2 wave
  • Case Material: High-Impace ABS plastic
  • Diameter (max): 2.05"
  • Finish: Non-reflecting Black
  • Mic Type: Handheld
  • Power Requirement: 9V battery
  • Wired/Wireless: Wireless
  • Height: 9.45"

RE510 Supercardioid Condenser Microphone
The RE510's 5/8" diameter, self-biased, condenser capsule offers the warmth of a larger capsule design without sacrificing off-axis performance or transient response. Supercardioid polar pattern. Low-frequency roll-off switch taylors low-frequency response to meet application requirements.

RE510 Features

  • Designed for House of Worship, Performance & Sports Venues, Stadium Systems, Studio, and other applications
  • Premium-grade handheld condenser microphone
  • Supercardioid pattern for excellent feedback rejection and acoustic isolation
  • Wide dynamic range
  • High-compliance shock mount effectively eliminates handling noise
  • Multistage pop filter

RE510 Specifications

  • Element: Condenser (self-biased)
  • Impedance, Low-Z balanced: 150 ohms
  • Maximum SPL (1% THD): 140 dB
  • Mic Type: Handheld
  • Open Circuit Voltage: 2.5mV/Pascal
  • Polar Pattern: Supercardioid

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
