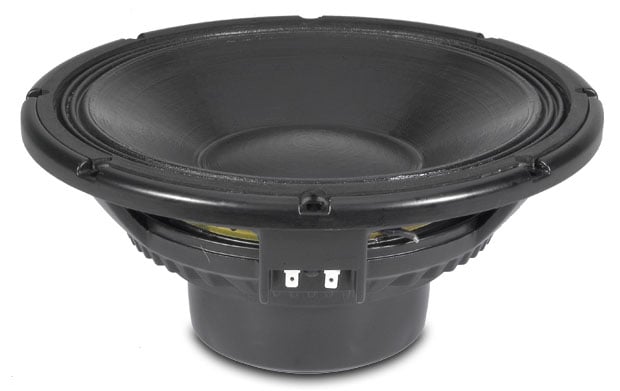

RCF LF12N401
12" Low Frequency Woofer

OUR PART #  LF12N401

Our Price: $399.00
List Price: $499.00
You save 20%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF's LF12N401 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantees dynamic precision. The standard 4" voice coil design provides a very high power handling. The unique dual-forced air venting system guarantees a very efficient voice coil ventilation to minimize the power compression and provide a good power handling.

The LF12N401 is ideal for use in applications where a low frequency is required in very small cabinet volume. Specially designed for touring, perfect for high professional bass reflex and horn loaded system.

Features:

  • 4-inch, inside-outside copper voice coil
  • 1600 Watt continuous program power handling
  • 96 dB Sensitivity
  • 45 Hz - 2 kHz Frequency range
  • Dual-forced air ventilation for minimum power compression
  • Single spider designed

Specifications:

  • Nominal Diameter: 300 mm/inch
  • Rated Impedance: 8 Ohm
  • Program Power: 1600 Watts
  • Power handling capacity: 800 Watts
  • Sensitivity: 95 dB
  • Frequency Range: 45-2000 Hz
  • Effective Piston Diameter: 260 mm/inch
  • Maximum Excursion Before Damage (peak to peak): 50 mm/inch
  • Minimum Impedance: 7.2 Ohm
  • Voice Coil Diameter: 100 mm/inch
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 21 mm/inch
  • Number of layers: 2
  • Kind of layer: inside/outside
  • Top Plate Thickness: 15 mm/inch
  • Cone Material: No pressed pulp
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: Triple roll
  • Net Weight: 6.5 Kg/lbs
  • Shipping Weight: 7.5 Kg/lbs

RCF LF12N401
12" Low Frequency Woofer

OUR PART #  LF12N401

Product Information:

RCF's LF12N401 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantees dynamic precision. The standard 4" voice coil design provides a very high power handling. The unique dual-forced air venting system guarantees a very efficient voice coil ventilation to minimize the power compression and provide a good power handling.

The LF12N401 is ideal for use in applications where a low frequency is required in very small cabinet volume. Specially designed for touring, perfect for high professional bass reflex and horn loaded system.

Features:

  • 4-inch, inside-outside copper voice coil
  • 1600 Watt continuous program power handling
  • 96 dB Sensitivity
  • 45 Hz - 2 kHz Frequency range
  • Dual-forced air ventilation for minimum power compression
  • Single spider designed

Specifications:

  • Nominal Diameter: 300 mm/inch
  • Rated Impedance: 8 Ohm
  • Program Power: 1600 Watts
  • Power handling capacity: 800 Watts
  • Sensitivity: 95 dB
  • Frequency Range: 45-2000 Hz
  • Effective Piston Diameter: 260 mm/inch
  • Maximum Excursion Before Damage (peak to peak): 50 mm/inch
  • Minimum Impedance: 7.2 Ohm
  • Voice Coil Diameter: 100 mm/inch
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 21 mm/inch
  • Number of layers: 2
  • Kind of layer: inside/outside
  • Top Plate Thickness: 15 mm/inch
  • Cone Material: No pressed pulp
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: Triple roll
  • Net Weight: 6.5 Kg/lbs
  • Shipping Weight: 7.5 Kg/lbs
