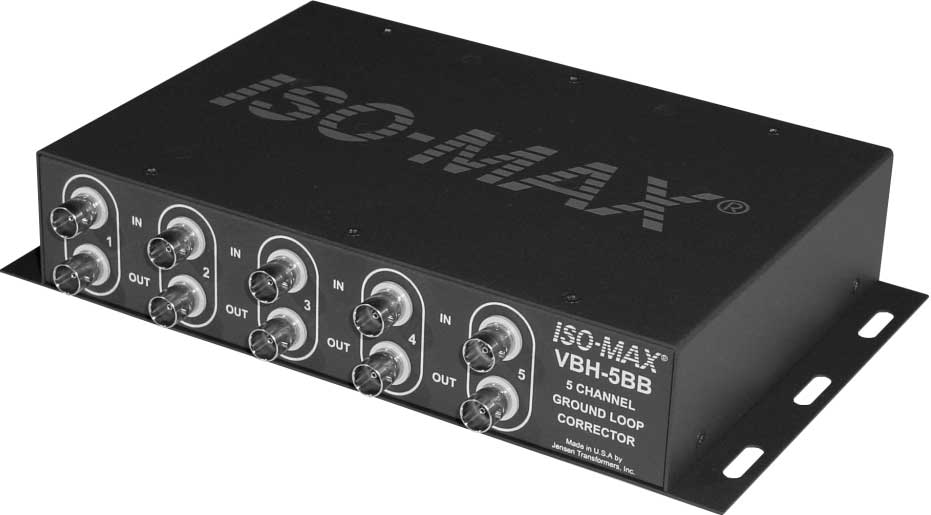

Jensen Transformers VBH-5BB
5-Channel Component Video Ground Loop Corrector (for 75 Ohm Systems)

OUR PART #:  VBH-5BB

Jensen Transformers' ISO-MAX® VBH-5BB reduces ground current induced video interference such as hum bars by a factor of over 100...
Learn More
Our Price: $949.99
List Price: $1,100.00
You save 14%!
Write the first review.
Jensen Transformers VBH-5BB
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Jensen Transformers' ISO-MAX® VBH-5BB reduces ground current induced video interference such as hum bars by a factor of over 100, eliminating the visible effects of these types of interference.  The high bandwidth and low VSWR prevent degradation of the picture quality due to high frequency roll-off and cable reflections.

  • 56dB of CMRR typ at 60Hz minimizes ground loops
  • DC to 900MHz bandwidth for excellent picture quality
  • Greater than 1 Vrms 60Hz common-mode level handling
  • VSWR under 1.1 at 100MHz to prevent waveform distortion
  • Insertion loss of 0.05 dB maintains maximum S/N ratio

NOTE: See specs sheet for more information.

Click to download
