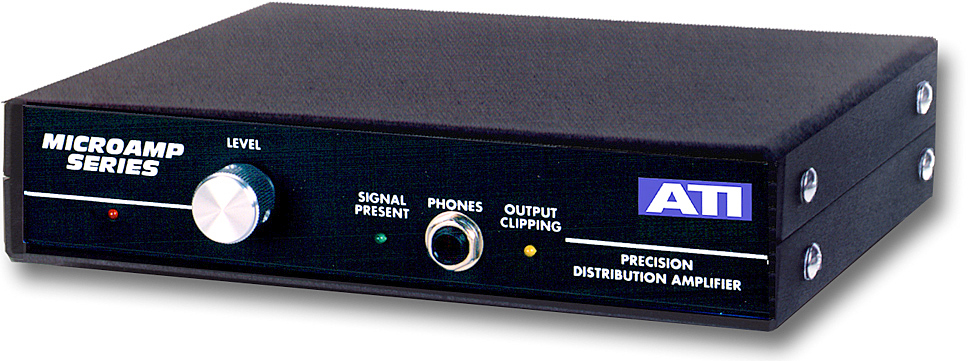

Audio Technologies DA1000 Distribution Amp, Analog, 1x8

With its new higher power outputs (+26dBm) at lower noise (-100dBm EIN) the updated DA1000 is ideal for every application and every budget.

Avoid RF and hum pick-up problems from noisy, lossy splitters. Prevent hard-to-find shorts from multiple taps on critical lines. Boost low console outputs. Drive long lines. Eliminate rolloff and distortion from mismatched load impedances. These ATI DAs fit neatly on a desktop or can be rack mounted with ATI's accessory Rack Mount Shelf. They use reliable barrier block connectors with fan-out strips for easy prewiring and quick-change servicing.

The DA1000 has a single, high output, active balanced driver per channel that is resistively split into 4 or 8 outputs each, all driven at precisely the same level. These economical units feature output clipping LEDs and a headphone/metering jack in a half rack package that you can mount singly or side-by-side in only 1RU of vertical space.

Features

• Output clipping indicators
• Signal present indicator
• Front phone jack for headphones, metering or auxiliary ninth output
• Single or dual side-by-side rack mounting kits
• Eight active balanced outputs with +26dBm each; full short circuit isolation
• Heavy common mode bypassing of all output and input lines for superior RF protection
• High slex rate design provides totally transparent operation

Specifications

• Output Level: +26dBm into 600 ohms
• Distortion: 0.0001% typical THD 20Hz to 20kHz
• Frequency Response: +/-.25dB, at 20 to 20kHz, -3dB at 100 kHz
• Noise: -100dBm EIN, 20Hz-20kHz
• Crosstalk: 70dB minimum @ 1kHz
• Gain: 26dB; front panel input level controls
• Inputs: 30k ohm balanced bridging
• Hum Rejection: 80dB hum CMR 60-120Hz
• Mounting: 21075-501 Accessory Rack Shelf mounts two units side by side
• Terminals: Rear Barrier Block; Fanning Strip supplied
• Power: 115 VAC +/-10%, 47-63 Hz; 230 VAC with internal wiring change
• Size (W x H x D): 8 1/2" x 1 3/4" x 7"
• Shipping Weight: 4 lbs
• Warranty: Limited, One Year Warranty
