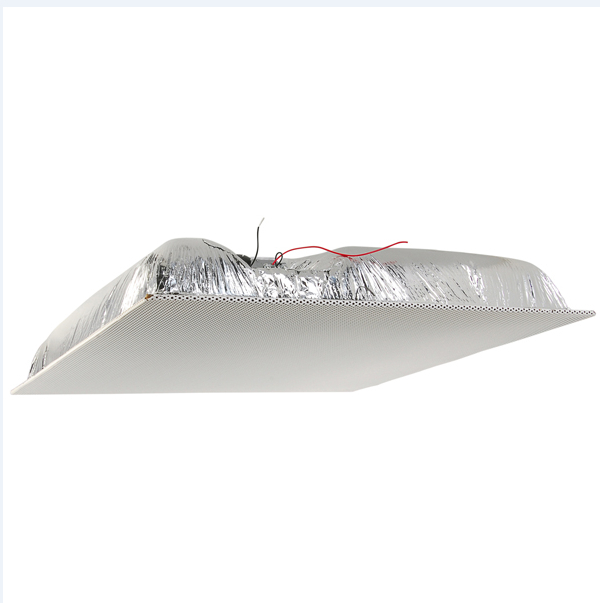

Quam SYSTEM-19 24"x24" Tile Replacement Loudspeaker System, 70V Transformer with Rotary Switch

OUR PART #: SYSTEM-19

Copied to clipboard

The SYSTEM 19 is a complete, UL Listed, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of a 6-1/2" O.D. ...Read more

Quam SYSTEM-19 24"x24" Tile Replacement Loudspeaker System, 70V Transformer With Rotary Switch Image 1
Quam SYSTEM-19 24"x24" Tile Replacement Loudspeaker System, 70V Transformer With Rotary Switch
Our Price: $192.20
List Price: $233.52
You save 18%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$6/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The SYSTEM 19 is a complete, UL Listed, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of a 6-1/2" O.D. LF woofer, 1" tweeter, and a 20W-70V rotary select transformer including an 8-Ohm tap. Molded fiber enclosure is 1412 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp is included. No assembly required.

Includes

  • LF Speaker: 150mm (6") diameter frame, polypropylene cone, butyl surround
  • HF Speaker: 25.4mm (1") diameter Mylar dome
  • Transformer: 20W, 5 taps at –3dB levels (20W, 10W, 5W, 2.5W, 1.25W),Rotary select

Features

  • Complete loudspeaker assembly with 6.5" frame loudspeaker and perforated steel baffle
  • 20W 70V rotary select transformer and 8Ω tap
  • Mounts parallel to floor plane in a 24" wide suspended ceiling tile grid
  • Great for signal tones, voice, and music applications
  • 30W RMS power handling

Specifications

  • Average Sensitivity: 91dB-SPL, 1W / 1M
  • Loudspeaker Power: 30W RMS, EIA 426A Standard Rating
  • Calculated Maximum System Output: 104dB-SPL, 20W / 1M
  • Frequency Response: 60Hz - 20kHz - EIA 426A Standard
  • Nominal Coverage Angle:
    • 100° Included angle, -6dB
    • 2kHz, half space

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download

Product Reviews

Reviewed by 1 customer
(0 are Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

Shaun P on 08/29/2023

These speakers are awesome for the price! The two-way driver system sounds great in both the 70v and 8 ohm tap settings. That being said... Quam needs to do a better job packing these in the boxes! There is absolutely nothing protecting the grill of the speaker from dents from the shipping process. The grill is sitting right against the outer cardboard box which subjects it to the rough handling that usually occurs when items are shipped.
