Lowell 8XD4-P
8" Recessed Protective Speaker Backbox (with One 1/2" Rear Knockout)


Our Price: $12.72
List Price: $15.90
You save 20%!
Write the first review.
Lowell 8XD4-P
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

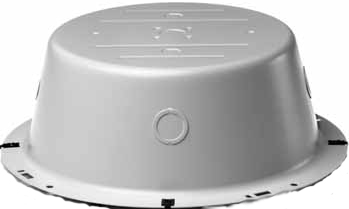

Lowell's conically shaped 8XD4-P speaker backbox is engineered to accommodate an 8" speaker in either new or existing
construction.  The slightly tapered, conical shape allows these backboxes to be stacked for space efficient storage and transit.  Mounts a wide selection of Lowell grilles and mounting accessories (see Specifications).  Series 8XD4 backboxes are seamless 22-gauge electro-galvanized steel construction with a polyurethane foam disc that meets UL flammability CAL-117.  The disc is affixed to the bottom inside surface to reduce acoustic and mechanical resonance.  Models are furnished with factory installed 8-32 screw retaining clips for grille mounting.

The 8XD4-P model is supplied with a single 1/2" planished knockout on the top to preserve the leak-free integrity of the backbox in return air plenums.


  • Mounts 8" Speakers
  • Backbox Size*: 10" Dia. x 4"D
    *Diameter measurement is the outside of the backbox cylinder
  • Galvanized steel
  • Stacks wasily for warehousing purposes
  • Single knockout on top for plenum
  • Compatible grille mounts: RS8-A(W), WB-8, WB-8H
