Quam SOLUTION 1
Two 8" Loudspeakers with Baffles, Back Cans, Universal Transformers & Tile Bridges

OUR PART #  SOLUTION-1

Our Price: $69.98
List Price: $102.00
You save 31%! (Low Price Guarantee)
In Stock

Two 8" loudspeaker assemblies with baffles, back cans, universal transformers, and tile bridges.

Quam's SOLUTION 1 is the components required for a set of two completely assembled loudspeakers. Speaker/dual voltage transformer/baffle is pre-assembled; additional labor and assembly required on site.

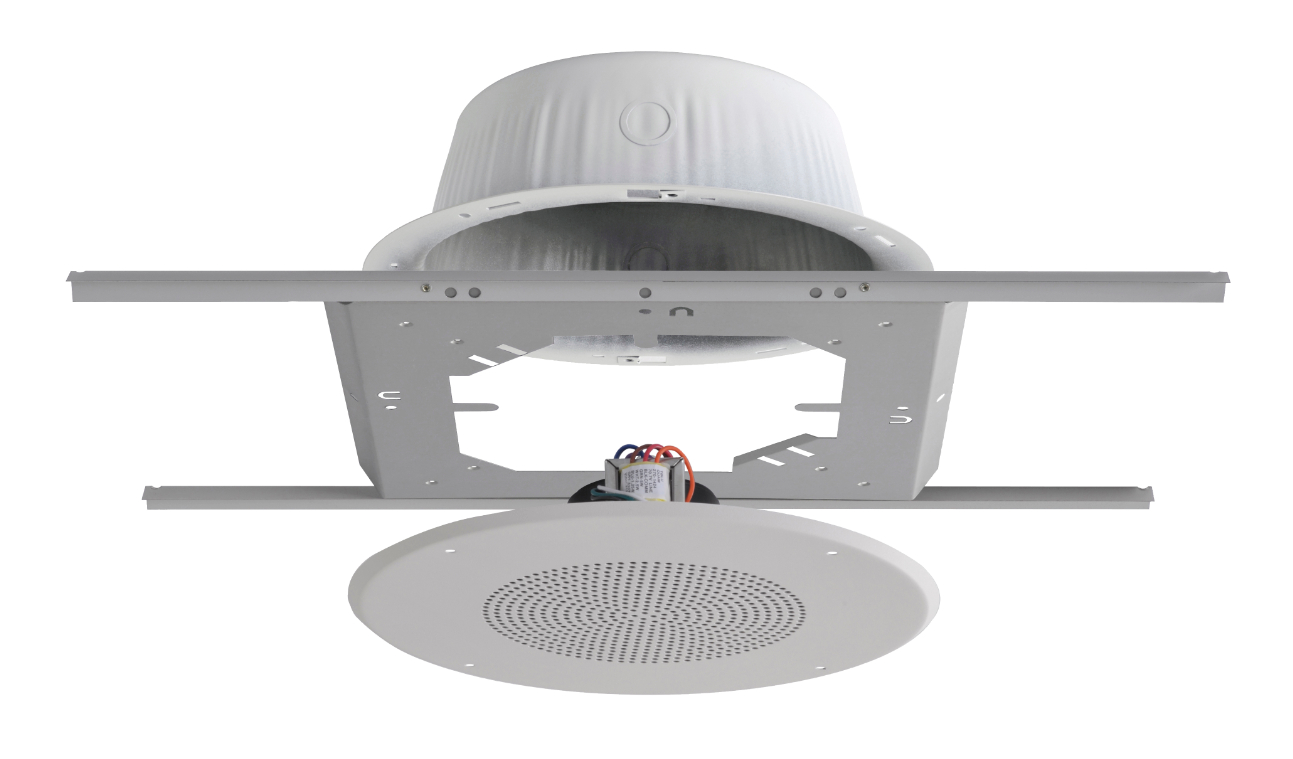

NOTE: Though only one is shown in the picture above, two speaker assemblies come with purchase of the SOLUTION-1.

Quam Solution 1 Includes:

  • 2x 8C10PAX loudspeakers
  • 2x TBLU-5W, 25/70.7V transformers (with 5 taps at -3 dB levels)
  • 2x BR8WS white baffles (with baked epoxy hybrid finish)
  • 2x UL Listed ERD8U back cans
  • 2x SSB-3 tile bridge supports

Quam SOLUTION 1 Feature & Specifications:

  • Speaker Size: 8" frame
  • Average Sensitivity: 95 dB-SPL, 1W/1M
  • Loudspeaker Power: 20W-RMS, EIA 426A Standard Rating
  • Calculated Maximum System Output: 102 dB-SPL, 5W/1M
  • Magnet Type: BeFe Ceramic
  • Weight: 10 oz. (Nominal)
  • Frequency Response: 60Hz - 17 kHz EIA 462A Standard
  • Nominal: 90° Included Angle, Coverage Angle -6 dB / 2 kHz, Half space
  • Audio Connection: 7" color-coded pigtails, tinned and pre-cut
  • Electrical Access: 5x 1/2" / 3/4" conduit knock-outs spaced 90° apart, oneon top

Quam SOLUTION 1
Two 8" Loudspeakers with Baffles, Back Cans, Universal Transformers & Tile Bridges

OUR PART #  SOLUTION-1

Product Information:

Two 8" loudspeaker assemblies with baffles, back cans, universal transformers, and tile bridges.

Quam's SOLUTION 1 is the components required for a set of two completely assembled loudspeakers. Speaker/dual voltage transformer/baffle is pre-assembled; additional labor and assembly required on site.

NOTE: Though only one is shown in the picture above, two speaker assemblies come with purchase of the SOLUTION-1.

Quam Solution 1 Includes:

  • 2x 8C10PAX loudspeakers
  • 2x TBLU-5W, 25/70.7V transformers (with 5 taps at -3 dB levels)
  • 2x BR8WS white baffles (with baked epoxy hybrid finish)
  • 2x UL Listed ERD8U back cans
  • 2x SSB-3 tile bridge supports

Quam SOLUTION 1 Feature & Specifications:

  • Speaker Size: 8" frame
  • Average Sensitivity: 95 dB-SPL, 1W/1M
  • Loudspeaker Power: 20W-RMS, EIA 426A Standard Rating
  • Calculated Maximum System Output: 102 dB-SPL, 5W/1M
  • Magnet Type: BeFe Ceramic
  • Weight: 10 oz. (Nominal)
  • Frequency Response: 60Hz - 17 kHz EIA 462A Standard
  • Nominal: 90° Included Angle, Coverage Angle -6 dB / 2 kHz, Half space
  • Audio Connection: 7" color-coded pigtails, tinned and pre-cut
  • Electrical Access: 5x 1/2" / 3/4" conduit knock-outs spaced 90° apart, oneon top
