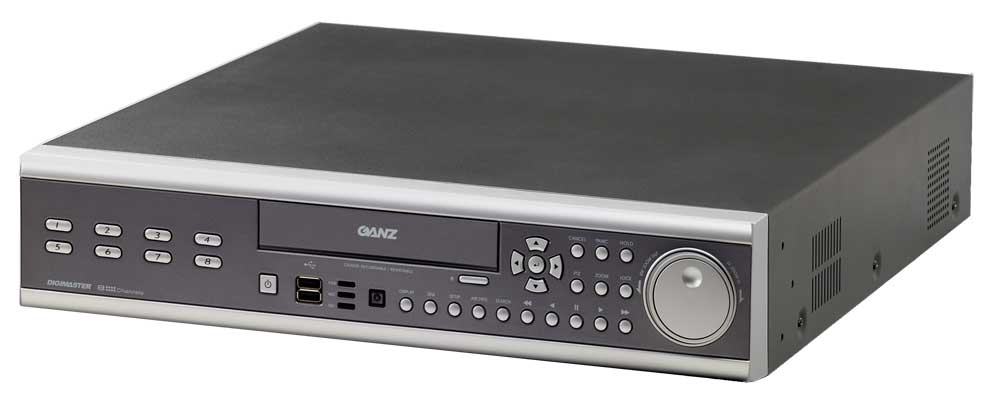

Computar/Ganz DR8N-500
DVR, 8 Channel with 500GB Hard Drive

OUR PART #:  DR8N-500

Our Price: $1,149.37
List Price: $2,130.00
You save 46%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Computar/Ganz DR8N-500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Features

  • 704 x 480 resolution
  • 120 IPS recording speed
  • Efficient MPEG-4 compression
  • USB mouse control
  • USB2 ports for downloading
  • Network connection with DDNS support
  • Handheld Remote and USB Thumb Drive Included
  • Other models available up to 3TB capacity

Specifications

  • Hard Drive: 500GB
  • Video Standard: NTSC or PAL (switchable)
  • Monitor Display: Real Time 3OFPS (NTSC) Per Camera
  • Operating System: Embedded Linux
  • Record Scheduling: Daily, weekly, adjustable to specific hour per channel
  • Record Mode: Continuous, Motion, Event, Panic
  • Remote Access: TCP/IP, View, Search, Recording and Control (client software or browser)
  • Playback: Up to 16 channel simultaneous playback
  • Pre/Post Alarm: 5 secs (pre), 3 mins (post), programmable per camera
  • VGA Output: Standard (for monitors with multi-sync function only) (1024 x 768, 60Hz)
  • Motion Detection: 16 x 16 Grid, Sensitivity Levels: 10
  • DVR Operation: Triplex
  • Video Inputs: 8 inputs, 1Vp-p, CVBS, 75 ohms, BNC
  • Video Outputs: 8 looping outputs
  • Monitor Outputs: 1 x BNC Composite Video, S-VHS and VGA
  • Spot Output: 2 x 1Vp-p, CVBS, 75 ohms, BNC
  • Audio Inputs: 4 x line-in, RCA
  • Audio Output: 1 x line-out, RCA
  • Screen Options: 1, 4, 6, 8
  • Resolution: 352x240, 704x240, 704x480 (NTSC)
  • Compression Standard: MPEG-4
  • Recording Speed (ips):
    352x240: 120 ips
    704x240: 60 ips
    704x480: 30 ips
  • Image File Size: 3-5 Kbyte (352x240), 5-10 Kbyte (704x240), 6-16 Kbyte (704x480)
  • Hard Disk Capacity: 3 x HDD, No limit on HDD size
  • Back-up Storage: USB Default (USB Memory Stick included) and/or backup to CD/DVD media via optional DVD writer
  • Alarm Inputs: 8 x TTL, programmable as NC/NO
  • Alarm Outputs: 8 x TTL
  • Back-up File Formats: AVI, JPG, BMP
  • Ethernet Interface: 10/100 Base-TX, RJ-45 connection
  • Network Control: Line View, Recording, Set-up, Playback, Search, Archiving
  • PTZ Control: via RS-485 interface
  • PTZ Operation: Pan, Tilt, Zoom, Focus, Iris, Preset and Tour
  • Daylight Savings: Included
  • Time Sync: Automatic via NTP
  • Software Updates: via USB memory stick
  • Security: Multi-Level access control via user password
  • Remote Alarm Notification: via SMTP email
  • Supply Voltage: 100VAC - 240VAC, 60/50Hz
  • Operating Temperature: 41 - 104 deg. F
  • Dimensions (W x H x D): 16.9" x 3.5" x 18.1"
  • Rack Mount Size: 2U
  • Weight: 16.1 lbs
