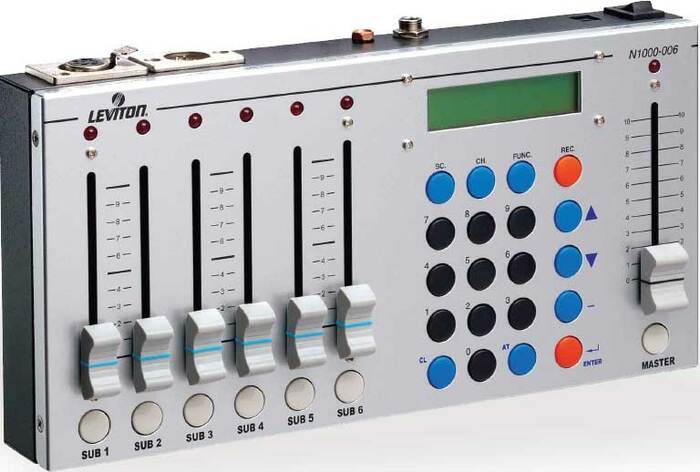

Leviton N1000-006
1000 Series DMX Lighting Controller

OUR PART #:  N1000-006

In its simplest application, Leviton/NSI's N1000-006 DMX lighting controller can be used for recall of recorded scenes.
Learn More
Our Price: $377.03
List Price: $412.50
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Leviton N1000-006
In Stock

Similar Products

In its simplest application, Leviton/NSI's N1000-006 DMX lighting controller can be used for recall of recorded scenes. Channel levels are set via the sub-masters in channel mode, or direct via the keypad. Additionally, scenes can record the channel levels per the incoming DMX control signal. In a more complex application, the 1000 series console can be used as both a scene controller and a backup console, offering immediate recall of a stored scene upon loss of DMX input control signal.

Leviton/NSI N1000-006 Features:

  • 6 submasters & 1 master fader
  • 40 scene memory
  • Scene memories can be assigned to submasters
  • Access to all 512 DMX control channels from keypad
  • Backup console mode – scene fade and activation upon sudden loss ofincoming DMX signal
  • Simple to use and easy to carry
  • Silver finish
  • Operates from included re-chargeable battery or from included power supply
  • Supports DMX Snapshot
  • 19" EIA rack mount option
  • LCD power save mode

Leviton/NSI N1000-006 Specifications:

  • Console Power: 12V/1A DC
  • Included Wall Wart: 120-260VAC
  • DMX Input: 1 Male 5-Pin XLR, DMX output, conforms to DMX512-A
  • DMX Output: 1 Female 5-Pin XLR, DMX output, conforms to DMX512-A
  • DMX Signal Connection: XLR 5-Pin
  • Battery Type: 1.2V NiMH AA rechargeable battery pack
  • Battery Charge Time: 5 hours
  • 3 hour operating time from battery
  • Dimensions (LxWxH): 10.31" x 5.2" x 1.77" (262 x 132 x 45 mm)
  • Weight: 4 lbs (2 kg)
  • Shipping Weight: 4.8 lbs (2.4 kg)
  • Backup mode trigger criteria: Any DMX input channel level > 0 followedby immediate loss of signal.  If all incoming channel levels are at 0,then DMX input signal is removed, backup mode is not invoked.
